Planetary Nebula Observations

by Hilary Jones


Except as noted, these are the photographs of Planetary Nebulae that I submitted to the Astronomical League's Planetary Nebula Program.

I used a PlaneWave CDK 12.5" telescope on a Paramount MX mount, which is located in my suburban observatory in Northern California at latitude 37° 49' N, longitude 121° 59' W, and altitude 109m. I took all the pictures using an SBIG ST-10XME camera and Astrodon filters. Except as noted, six images were acquired for each filter using an exposure time of 300 seconds per image. I used CCD Commander to drive the process, and TheSkyX to control the scope and camera. I did the post processing using MaxIm DL, CCDStack2, and Photoshop CS4.

I photographed all targets using two filters. The first filter was an L filter, which appears in the image that usually shows on this web page. But if you hover your mouse over that image, a different image will be displayed to show how the object looks with the second filter. This was either an OIII or an Ha filter. The contrast of the two pictures has been adjusted to make them roughly the same everywhere except near the planetary nebula itself. In some cases you may need blink the two images to identify where the nebula actually is.

You will see that many of my pictures were taken with an Ha filter, where you might have expected the OIII filter to be the better choice. However in my experience many targets were barely visible with the OIII filter, while they showed well with the Ha filter. I assume that this was because my Ha filter was better able to suppress sky glow.

In the following tables, the seeing is given by the full width at half maximum (FWHM) of a typical star's profile, expressed in arc seconds; and the sky darkness is expressed in magnitudes per square arc second (mag/sq"). Both values were measured directly from the image, so they differ from what would have been measured at the zenith. I did not use a Sky Quality Meter to obtain the sky darkness, although that data is available upon request.

To see a list of the Planetary Nebulae that were photographed for this project, click here. I tried to stick to the official target list for the Astronomical League's Planetary Nebula project. But my observatory doesn't allow me to photograph objects at very low declination, so I had to supplement the list with objects from Abell's Planetary Nebula catalog.
Object Name:
Abell 4
IDs:
PK 144-15.1, PN G144.3-15.5
RA:
2.7565833
Dec:
42.5513889
Constellation:
Per
Magnitude:
Size:
22"
Surface Brightness:

L filter:
Abell 4-L.2014.12.22.jpg
OIII filter:
Abell 4-OIII.2014.12.22.jpg
Date:
12/22/2014
Date:
12/22/2014
Time:
8:55 PM
Time:
8:55 PM
Seeing:
FWHM = 2.3"
Seeing:
FWHM = 2.3"
Darkness:
19.81 mag/sq"
Darkness:
19.81 mag/sq"
Moon phase:
1%
Moon phase:
1%
Transparency:
Average
Transparency:
Average
Image of Abell 4Notes: Small uniform disk with almost no structure. Central star arguably visible, but very dim.
Object Name:
Abell 5
IDs:
RA:
2.8703889
Dec:
50.5977783
Constellation:
Per
Magnitude:
Size:
134" x 121"
Surface Brightness:

L filter:
Abell 5-L.2015.01.20.jpg
Ha filter:
Abell 5-Ha.2015.01.27.jpg
Date:
1/20/2015
Date:
1/27/2015
Time:
6:43 PM
Time:
10:12 PM
Seeing:
FWHM = 1.9"
Seeing:
FWHM = 2.1"
Darkness:
19.25 mag/sq"
Darkness:
18.80 mag/sq"
Moon phase:
0%
Moon phase:
58%
Transparency:
Average
Transparency:
Below Average
Image of Abell 5Notes: Target does not show up in OIII and L pictures, but is quite clear in Ha picture, where it takes the shape of a broken ring. The thickest parts of the ring are in the NW and SE edges. A strong star, possibly the central star, is off-center to the W. (Not submitted.)
Object Name:
Abell 6
IDs:
RA:
2.9813889
Dec:
64.4997253
Constellation:
Cas
Magnitude:
Size:
3.133x2.9
Surface Brightness:

L filter:
Abell 6-L.2015.02.13.jpg
Ha filter:
Abell 6-Ha.2015.02.13.jpg
Date:
2/13/2015
Date:
2/13/2015
Time:
7:05 PM
Time:
7:05 PM
Seeing:
FWHM = 3.1"
Seeing:
FWHM = 3.1"
Darkness:
18.81 mag/sq"
Darkness:
18.81 mag/sq"
Moon phase:
33%
Moon phase:
33%
Transparency:
Above average
Transparency:
Above average
Image of Abell 6Notes: Very faint disk with slightly heavier rim in NW and SE. Barely visible in L picture, but clearly present in Ha picture. A survey photo with OIII filter did not show it at all. There are bright stars within the disk, but only very faint stars near the center. (Not submitted.)
Object Name:
Abell 8
IDs:
RA:
5.1105281
Dec:
39.1355556
Constellation:
Aur
Magnitude:
16.60
Size:
1
Surface Brightness:
25.23 mag/sq"

L filter:

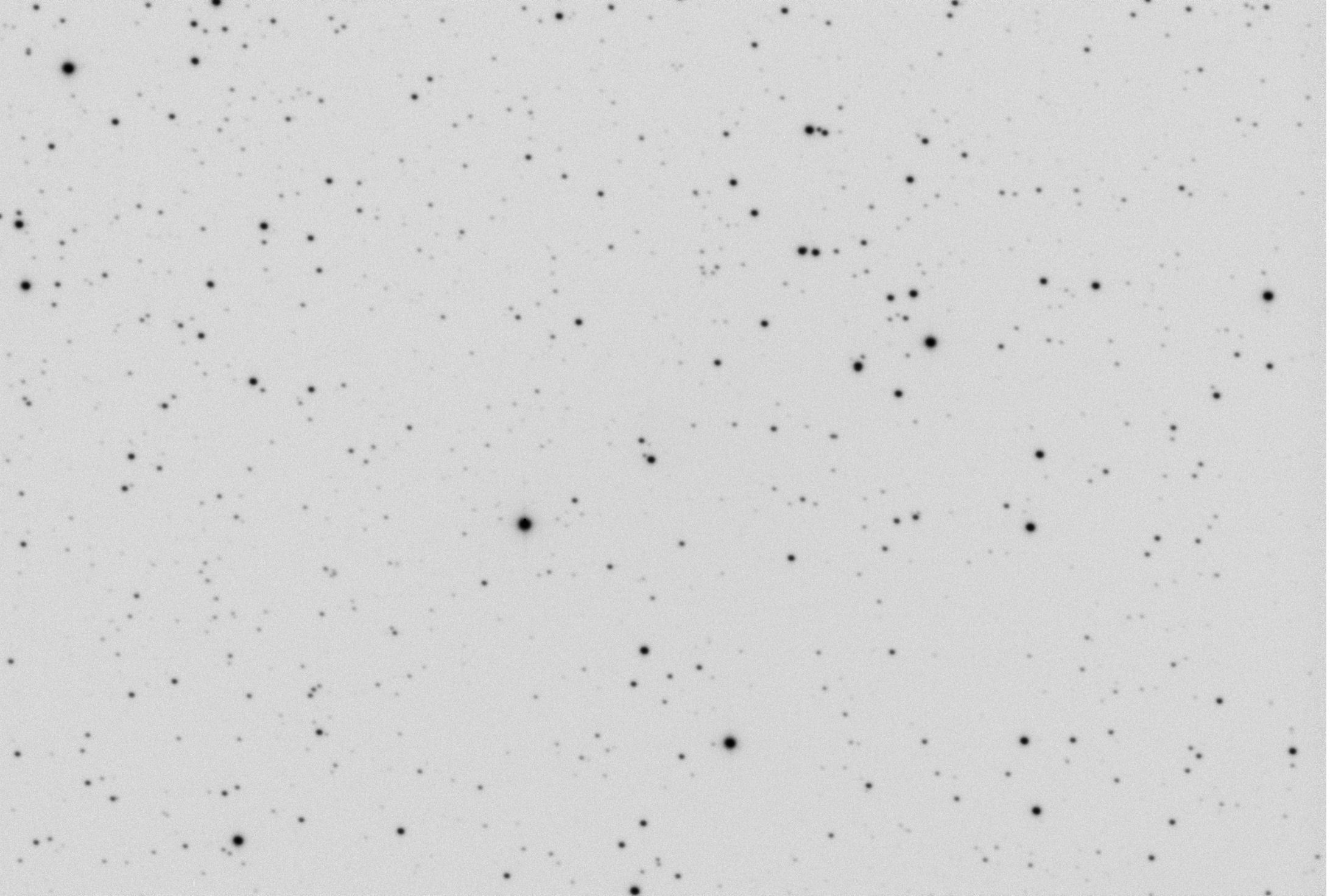

Abell 8-L.2015.02.13.jpg

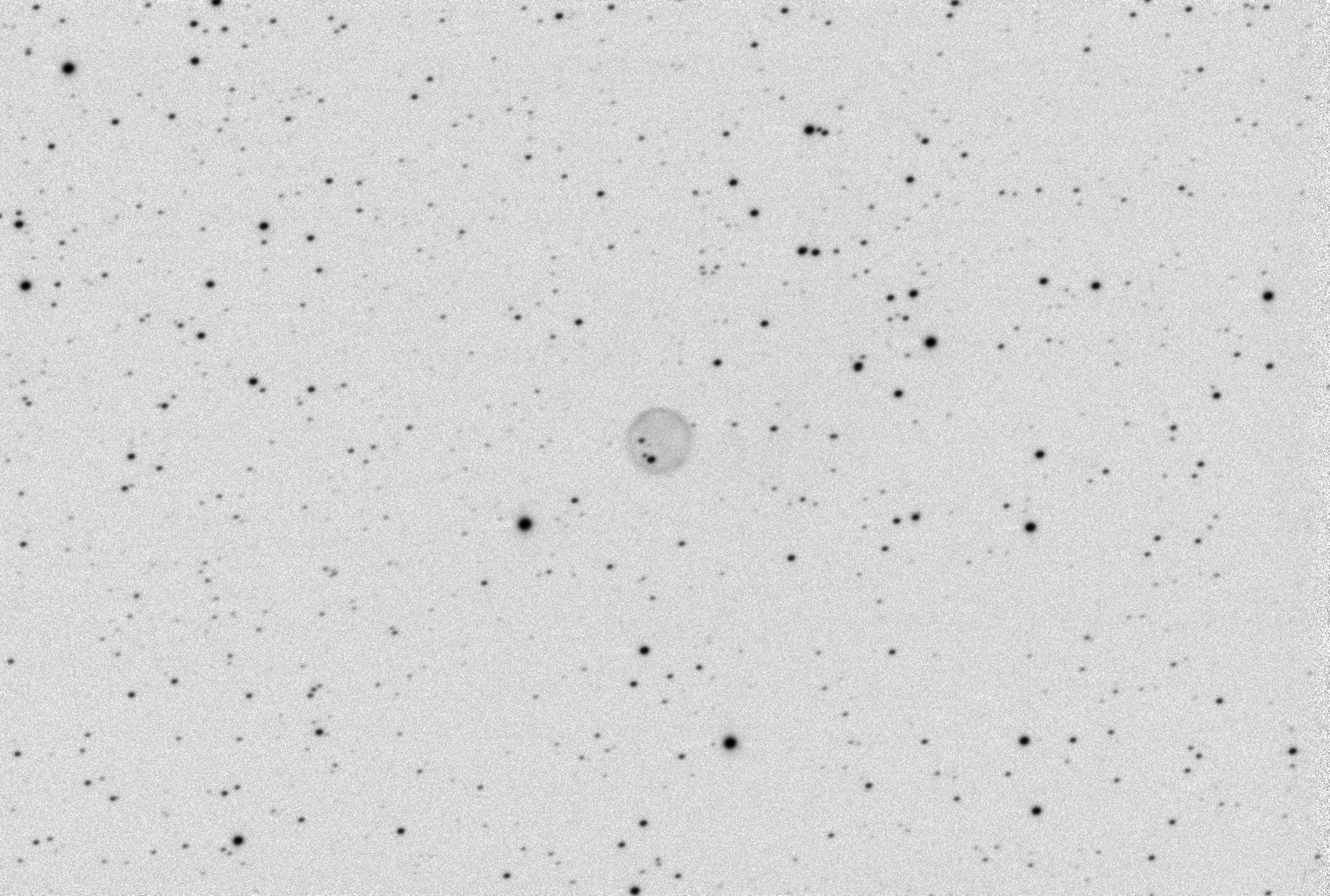

Ha filter:
Abell 8-Ha.2015.02.15.jpg
Date:
2/13/2015
Date:
2/15/2015
Time:
9:03 PM
Time:
8:30 PM
Seeing:
FWHM = 2.9"
Seeing:
FWHM = 2.6"
Darkness:
18.37 mag/sq"
Darkness:
0.00 mag/sq"
Moon phase:
32%
Moon phase:
14%
Transparency:
Above average
Transparency:
Above average
Image of Abell 8Notes: A very symmetrical disk with a slightly stronger ring at the edge. Three bright stars within the disk, but none of them well-centered. Not visible in L and OIII pictures. Unlike most pictures, the Ha picture is composed of 12 frames. (Not submitted.)
Object Name:
Abell 9
IDs:
RA:
5.4833333
Dec:
36.0333333
Constellation:
Aur
Magnitude:
Size:
0.667x0.567
Surface Brightness:

L filter:

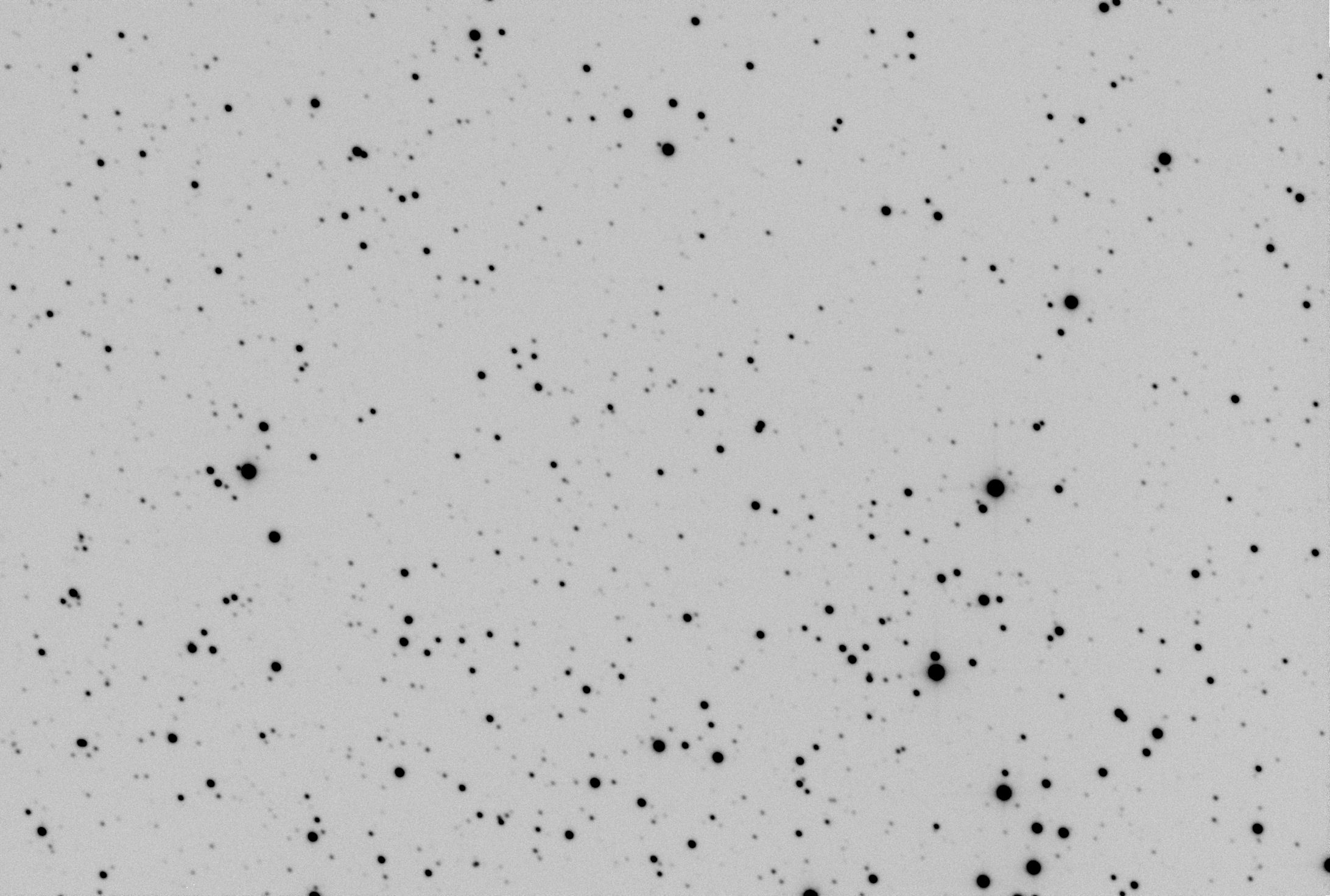

Abell 9-L.2015.02.13.jpg
Ha filter:
Abell 9-Ha.2015.02.15.jpg
Date:
2/13/2015
Date:
2/15/2015
Time:
10:46 PM
Time:
8:30 PM
Seeing:
FWHM = 3.2"
Seeing:
FWHM = 2.6"
Darkness:
19.12 mag/sq"
Darkness:
0.00 mag/sq"
Moon phase:
32%
Moon phase:
14%
Transparency:
Above average
Transparency:
Above average
Image of Abell 9Notes: Small slightly distorted disk, with heaviness on the edge. Not visible in L or OIII pictures. Central star not seen. Unlike most pictures, the Ha picture is composed of 12 frames. (Not submitted.)
Object Name:
Abell 12
IDs:
RA:
6.0396667
Dec:
9.6508333
Constellation:
Ori
Magnitude:
13.90
Size:
0.617
Surface Brightness:
21.48 mag/sq"

L filter:
Abell 12-L.2015.02.15.jpg
OIII filter:
Abell 12-OIII.2015.02.15.jpg
Date:
2/15/2015
Date:
2/15/2015
Time:
9:41 PM
Time:
9:41 PM
Seeing:
FWHM = 3.0"
Seeing:
FWHM = 3.0"
Darkness:
19.15 mag/sq"
Darkness:
19.15 mag/sq"
Moon phase:
13%
Moon phase:
13%
Transparency:
Above average
Transparency:
Above average
Image of Abell 12Notes: A featrureless disk very near a bright star. Central star not visible. Nebula is visible in L, Ha and OIII pictures. My images were badly bloomed. They would be improved by using much shorter exposures times.
Object Name:
Abell 13
IDs:
RA:
6.0796389
Dec:
3.9408333
Constellation:
Ori
Magnitude:
Size:
2.9x2.233
Surface Brightness:

L filter:
Abell 13-L.2015.02.24.jpg
Ha filter:
Abell 13-Ha.2015.02.24.jpg
Date:
2/24/2015
Date:
2/24/2015
Time:
7:19 PM
Time:
7:19 PM
Seeing:
FWHM = 4.2"
Seeing:
FWHM = 4.2"
Darkness:
18.81 mag/sq"
Darkness:
18.81 mag/sq"
Moon phase:
40%
Moon phase:
40%
Transparency:
Above average
Transparency:
Above average
Image of Abell 13Notes: Egg-shaped ring oriented NE/SW, somewhat thicker and heavier to the NW. The central star could be visible, albeit somewhat off center. Shows weakly with the L filter, but is best with Ha.
Object Name:
Abell 14
IDs:
RA:
6.1857778
Dec:
11.7797222
Constellation:
Ori
Magnitude:
14.00
Size:
0.667x0.45
Surface Brightness:
21.32 mag/sq"

L filter:
Abell 14-L.2015.02.24.jpg
Ha filter:
Abell 14-Ha.2015.02.24.jpg
Date:
2/24/2015
Date:
2/24/2015
Time:
8:37 PM
Time:
8:37 PM
Seeing:
FWHM = 4.0"
Seeing:
FWHM = 4.0"
Darkness:
8.91 mag/sq"
Darkness:
18.91 mag/sq"
Moon phase:
41%
Moon phase:
41%
Transparency:
Above average
Transparency:
Above average
Image of Abell 14Notes: Small oblong shape, rather like two circles offset from each other. One bright star halfway between them could be the central star. (Not submitted.)
Object Name:
Abell 16
IDs:
RA:
6.7320281
Dec:
61.7902794
Constellation:
Lyn
Magnitude:
15.90
Size:
2.35
Surface Brightness:
26.38 mag/sq"

L filter:
Abell 16-L.2015.02.18.jpg
OIII filter:
Abell 16-OIII.2015.02.18.jpg
Date:
2/18/2015
Date:
2/18/2015
Time:
8:28 PM
Time:
8:28 PM
Seeing:
FWHM = 2.1"
Seeing:
FWHM = 2.1"
Darkness:
19.05 mag/sq"
Darkness:
19.05 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Average
Transparency:
Average
Image of Abell 16Notes: Barely visible disk. I spent a lot of time comparing my picture to photos on the web before I could positively say that the shape in my picture was correct. This picture really should be redone with more exposures; and it would probably show up better using an Ha filter.
Object Name:
Abell 19
IDs:
RA:
6.9990553
Dec:
14.6130556
Constellation:
Gem
Magnitude:
17.00
Size:
1.117
Surface Brightness:
25.87 mag/sq"

L filter:
Abell 19-L.2015.02.18.jpg
Ha filter:
Abell 19-Ha.2015.02.18.jpg
Date:
2/18/2015
Date:
2/18/2015
Time:
9:40 PM
Time:
9:40 PM
Seeing:
FWHM = 2.0"
Seeing:
FWHM = 2.0"
Darkness:
19.08 mag/sq"
Darkness:
19.08 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Average
Transparency:
Average
Image of Abell 19Notes: A medium size featureless disk. Central star seems quite bright. (Not submitted.)
Object Name:
Abell 20
IDs:
RA:
7.3827225
Dec:
1.7602778
Constellation:
CMi
Magnitude:
16.30
Size:
1.117
Surface Brightness:
25.17 mag/sq"

L filter:
Abell 20-L.2015.04.14.jpg
OIII filter:
Abell 20-OIII.2015.04.14.jpg
Date:
4/14/2015
Date:
4/14/2015
Time:
8:29 PM
Time:
8:29 PM
Seeing:
FWHM = 3.8"
Seeing:
FWHM = 3.8"
Darkness:
18.05 mag/sq"
Darkness:
18.05 mag/sq"
Moon phase:
21%
Moon phase:
21%
Transparency:
Average
Transparency:
Average
Image of Abell 20Notes: Medium sized disk, with slightly heavier edge. A central star is visible. Only 25 minutes for L picture, and 20 minutes for OIII because of obstacles. (Not submitted.)
Object Name:
Abell 21
IDs:
Medusa Nebula
RA:
7.4841389
Dec:
13.2416667
Constellation:
Gem
Magnitude:
Size:
10.25
Surface Brightness:

L filter:

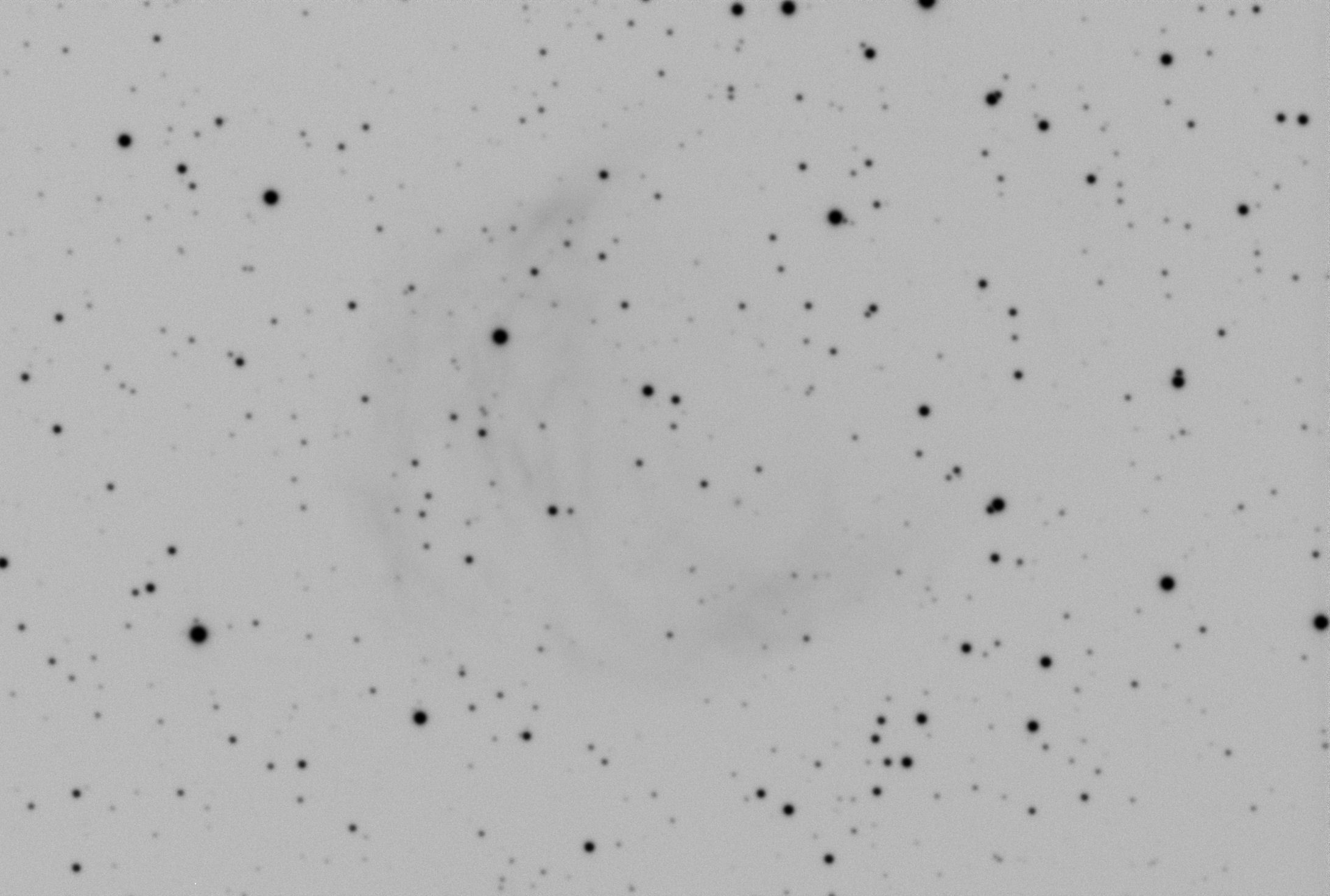

Abell 21-L.2015.02.24.jpg
Ha filter:
Abell 21-Ha.2015.02.24.jpg
Date:
2/24/2015
Date:
2/24/2015
Time:
9:49 PM
Time:
9:49 PM
Seeing:
FWHM = 4.2"
Seeing:
FWHM = 4.2"
Darkness:
19.14 mag/sq"
Darkness:
19.14 mag/sq"
Moon phase:
42%
Moon phase:
42%
Transparency:
Above average
Transparency:
Above average
Image of Abell 21Notes: Very large irregular structure, rather like looking into the end of a cylinder. Oriented NW/SE,with heaviest end in the SE, and the dimmer "open" end of the cylinder in the NW. Many streams of material cross the area. Many stars, so it's not obvous which one was the original cental star, if any. Can be seen faintly in L picture, but Ha is much better.
Object Name:
Abell 22
IDs:
RA:
7.6018611
Dec:
2.7047222
Constellation:
CMi
Magnitude:
15.40
Size:
1.45
Surface Brightness:
24.84 mag/sq"

L filter:
Abell 22-L.2015.03.26.jpg
Ha filter:
Abell 22-Ha.2015.03.26.jpg
Date:
3/26/2015
Date:
3/26/2015
Time:
8:31 PM
Time:
8:31 PM
Seeing:
FWHM = 3.8"
Seeing:
FWHM = 3.8"
Darkness:
18.60 mag/sq"
Darkness:
18.60 mag/sq"
Moon phase:
45%
Moon phase:
45%
Transparency:
Above average
Transparency:
Above average
Image of Abell 22Notes: Diffuse ill-defined shape, somewhat rectangular with a heavier region in the N. There is also a fainter region further to the N and separated from the main nebula, and an even fainter region to the S. These could be remnants of a ring. One central star stands out. (Not submitted.)
Object Name:
Abell 24
IDs:
RA:
7.8606944
Dec:
3.0075
Constellation:
CMi
Magnitude:
13.60
Size:
4.417x3
Surface Brightness:
25.03 mag/sq"

L filter:
Abell 24-L.2015.03.19.jpg
Ha filter:
Abell 24-Ha.2015.03.19.jpg
Date:
3/19/2015
Date:
3/19/2015
Time:
10:00 PM
Time:
10:00 PM
Seeing:
FWHM = 4.1"
Seeing:
FWHM = 4.1"
Darkness:
18.68 mag/sq"
Darkness:
18.68 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Above average
Transparency:
Above average
Image of Abell 24Notes: Large irregular structure. Barely visible in L, but shows well in Ha. Two especially strong regions to the E and W. Puffs sticking out in various directions. Several stars, with one that could be the original central star.
Object Name:
Abell 25
IDs:
RA:
8.1125556
Dec:
-2.8786111
Constellation:
Mon
Magnitude:
15.40
Size:
3.133x2.45
Surface Brightness:
26.24 mag/sq"

L filter:
Abell 25-L.2015.03.26.jpg
Ha filter:
Abell 25-Ha.2015.03.26.jpg
Date:
3/26/2015
Date:
3/26/2015
Time:
9:43 PM
Time:
9:43 PM
Seeing:
FWHM = 3.2"
Seeing:
FWHM = 3.2"
Darkness:
18.88 mag/sq"
Darkness:
18.88 mag/sq"
Moon phase:
46%
Moon phase:
46%
Transparency:
Above average
Transparency:
Above average
Image of Abell 25Notes: A broken ring, with heavy areas to NW and SE, and almost no connection between them. A central star can be seen. (Not submitted.)
Object Name:
Abell 28
IDs:
RA:
8.6929444
Dec:
58.2316667
Constellation:
UMa
Magnitude:
Size:
4.5
Surface Brightness:

L filter:
Abell 28-L.2015.02.15.jpg
Ha filter:
Abell 28-Ha.2015.02.20.jpg
Date:
2/16/2015
Date:
2/20/2015
Time:
12:12 PM
Time:
7:14 PM
Seeing:
FWHM = 3.4"
Seeing:
FWHM = 3.4"
Darkness:
19.49 mag/sq"
Darkness:
0.00 mag/sq"
Moon phase:
9%
Moon phase:
5%
Transparency:
Above average
Transparency:
Above average
Image of Abell 28Notes: Large extremely faint featureless disk. Somewhat heavier on the SW side. The Ha picture for this target comprises 22 frames. (Not submitted.)
Object Name:
Abell 30
IDs:
RA:
8.7817775
Dec:
17.8758336
Constellation:
Cnc
Magnitude:
15.60
Size:
2.117
Surface Brightness:
25.86 mag/sq"

L filter:
Abell 30-L.2015.02.20..jpg
Ha filter:
Abell 30-Ha.2015.02.20..jpg
Date:
2/20/2015
Date:
2/20/2015
Time:
9:38 PM
Time:
9:38 PM
Seeing:
FWHM = 3.0"
Seeing:
FWHM = 3.0"
Darkness:
19.26 mag/sq"
Darkness:
19.26 mag/sq"
Moon phase:
5%
Moon phase:
5%
Transparency:
Above average
Transparency:
Above average
Image of Abell 30Notes: Medium size featureless disk. Bottom edge shows a slight expansion fhat keeps it from being a perfect circle. For this target, Ha picture comprises 17 frames. (Not submitted.)
Object Name:
Abell 33
IDs:
RA:
9.6525003
Dec:
-2.8091667
Constellation:
Hya
Magnitude:
13.40
Size:
4.5
Surface Brightness:
25.29 mag/sq"

L filter:
Abell 33-L.2015.03.19.jpg
OIII filter:
Abell 33-OIII.2015.03.19.jpg
Date:
3/19/2015
Date:
3/19/2015
Time:
8:47 PM
Time:
8:47 PM
Seeing:
FWHM = 3.8"
Seeing:
FWHM = 3.8"
Darkness:
18.75 mag/sq"
Darkness:
18.75 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Above average
Transparency:
Above average
Image of Abell 33Notes: Large nearly featureless disk. May have a slightly brighter central area in the shape of a rectangle. A central star is visible.
Object Name:
Abell 39
IDs:
RA:
16.4592781
Dec:
27.9094447
Constellation:
Her
Magnitude:
12.90
Size:
2.9
Surface Brightness:
23.84 mag/sq"

L filter:
Abell 39-L.2015.03.19.jpg
Ha filter:
Abell 39-Ha.2015.03.19.jpg
Date:
3/20/2015
Date:
3/20/2015
Time:
4:06 PM
Time:
4:06 PM
Seeing:
FWHM = 8.1"
Seeing:
FWHM = 8.1"
Darkness:
19.59 mag/sq"
Darkness:
19.59 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Above average
Transparency:
Above average
Image of Abell 39Notes: Medium sized featureless disk, with a somewhat heavier ring. Very symmetrical. Central star stands out in the L picture, barely visible in Ha. Very poor seeing for this picture, so details would be easy to overlook. (Not submitted.)
Object Name:
Abell 43
IDs:
RA:
17.8923053
Dec:
10.6222222
Constellation:
Oph
Magnitude:
14.60
Size:
1.333x1.233
Surface Brightness:
23.77 mag/sq"

L filter:
Abell 43-L.2015.06.22.jpg
Ha filter:
Abell 43-Ha.2015.06.22.jpg
Date:
6/23/2015
Date:
6/23/2015
Time:
12:19 AM
Time:
12:19 AM
Seeing:
FWHM = 4.3"
Seeing:
FWHM = 4.3"
Darkness:
19.56 mag/sq"
Darkness:
19.56 mag/sq"
Moon phase:
37%
Moon phase:
37%
Transparency:
Above average
Transparency:
Above average
Image of Abell 43Notes: A flat disk with almost no features. Slightly heavier on the NE side, where there is also a star; and a slightly heavier rim all the way around. A central star is visible. This nebula shows best in the Ha image, but is also slightly visible in the L image. (Not submitted.)
Object Name:
Abell 46
IDs:
RA:
18.5218886
Dec:
26.9380556
Constellation:
Lyr
Magnitude:
15.60
Size:
1.117x1
Surface Brightness:
24.35 mag/sq"

L filter:
Abell 46-L.2015.04.14.jpg
Ha filter:
Abell 46-Ha.2015.04.14.jpg
Date:
4/15/2015
Date:
4/15/2015
Time:
4:07 AM
Time:
4:07 AM
Seeing:
FWHM = 4.0"
Seeing:
FWHM = 4.0"
Darkness:
19.70 mag/sq"
Darkness:
19.70 mag/sq"
Moon phase:
18%
Moon phase:
18%
Transparency:
Average
Transparency:
Average
Image of Abell 46Notes: Disk with bulges on N, S, Eand W sides, giving the appearance of a four-leaf clover. Conspicuous central star. (Not submitted.)
Object Name:
Abell 54
IDs:
RA:
19.1442508
Dec:
22.9808333
Constellation:
Vul
Magnitude:
17.10
Size:
1.117x0.783
Surface Brightness:
25.58 mag/sq"

L filter:
Abell 54-L.2015.07.15.jpg
Ha filter:
Abell 54-Ha.2015.07.15.jpg
Date:
7/15/2015
Date:
7/15/2015
Time:
9:51 PM
Time:
9:51 PM
Seeing:
FWHM = 3.5"
Seeing:
FWHM = 3.5"
Darkness:
19.35 mag/sq"
Darkness:
19.35 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Transparent
Transparency:
Transparent
Image of Abell 54Notes: Very faint disk, slightly oblong in NE/SW direciton, with slightly heavier ends to NE and SW. A central star is visible. Not visible in L picture. (Not submitted.)
Object Name:
Abell 59
IDs:
RA:
19.3113614
Dec:
19.5655556
Constellation:
Sge
Magnitude:
17.20
Size:
1.567x1.333
Surface Brightness:
26.63 mag/sq"

L filter:
Abell 59-L.2015.07.26.jpg
Ha filter:
Abell 59-Ha.2015.07.26.jpg
Date:
7/26/2015
Date:
7/26/2015
Time:
10:04 PM
Time:
10:04 PM
Seeing:
FWHM = 5.8"
Seeing:
FWHM = 5.8"
Darkness:
18.91 mag/sq"
Darkness:
18.91 mag/sq"
Moon phase:
76%
Moon phase:
76%
Transparency:
Above average
Transparency:
Above average
Image of Abell 59Notes: A medium sized disk which is heavier on the N and fades to almost nothing on the S, giving a crescent shape. Stars in the area are not well-centered. (Not submitted.)
Object Name:
Abell 61
IDs:
RA:
19.3194714
Dec:
46.2433319
Constellation:
Cyg
Magnitude:
13.00
Size:
3.333
Surface Brightness:
24.24 mag/sq"

L filter:
Abell 61-L.2015.06.23.jpg
Ha filter:
Abell 61-Ha.2015.06.23.jpg
Date:
6/24/2015
Date:
6/24/2015
Time:
1:54 AM
Time:
1:54 AM
Seeing:
FWHM = 5.1"
Seeing:
FWHM = 5.1"
Darkness:
19.92 mag/sq"
Darkness:
19.92 mag/sq"
Moon phase:
46%
Moon phase:
46%
Transparency:
Transparent
Transparency:
Transparent
Image of Abell 61Notes: A large very faint symmetric disk, heavier to the NW and fading to near invisibility in the SE. No other structure. Several stars in the L picture could be the original central star, including one that is well-centered. (Not submitted.)
Object Name:
Abell 62
IDs:
RA:
19.5550842
Dec:
10.6169444
Constellation:
Aql
Magnitude:
13.00
Size:
2.683x2.517
Surface Brightness:
23.70 mag/sq"

L filter:
Abell 62-L.2015.07.16.jpg
Ha filter:
Abell 62-Ha.2015.07.16.jpg
Date:
7/16/2015
Date:
7/16/2015
Time:
11:15 PM
Time:
11:15 PM
Seeing:
FWHM = 4.9"
Seeing:
FWHM = 4.9"
Darkness:
19.47 mag/sq"
Darkness:
19.47 mag/sq"
Moon phase:
1%
Moon phase:
1%
Transparency:
Transparent
Transparency:
Transparent
Image of Abell 62Notes: A medium sized flat disk with a bit of a rim, which is especially heavy in the SW and almost disappears in the NE. No central star is apparent. (Not submitted.)
Object Name:
Abell 71
IDs:
RA:
20.5397778
Dec:
47.3511125
Constellation:
Cyg
Magnitude:
15.20
Size:
2.8x2.45
Surface Brightness:
25.92 mag/sq"

L filter:
Abell 71-L.2015.07.16.jpg
Ha filter:
Abell 71-Ha.2015.07.16.jpg
Date:
7/16/2015
Date:
7/16/2015
Time:
10:00 PM
Time:
10:00 PM
Seeing:
FWHM = 3.8"
Seeing:
FWHM = 3.8"
Darkness:
19.39 mag/sq"
Darkness:
19.39 mag/sq"
Moon phase:
1%
Moon phase:
1%
Transparency:
Transparent
Transparency:
Transparent
Image of Abell 71Notes: A flat but slightly mottled disk shape, with two arms suggestive of a spiral galaxy. It has been said that this target is not actually a planetary nebula because it has almost no OIII emission. Instead it might just be a cloud of H gases. This object is embedded in a nebulous cloud of material known as SH 2-115, details of which can be seen in my photograph.
Object Name:
Abell 74
IDs:
VV' 546
RA:
21.2811944
Dec:
24.1477778
Constellation:
Vul
Magnitude:
12.20
Size:
14'
Surface Brightness:
26.56 mag/sq"

L filter:
Abell 74-L.2015.07.16.jpg
Ha filter:
Abell 74-Ha.2015.07.16.jpg
Date:
7/17/2015
Date:
7/17/2015
Time:
2:55 AM
Time:
2:55 AM
Seeing:
FWHM = 4.7"
Seeing:
FWHM = 4.7"
Darkness:
19.97 mag/sq"
Darkness:
19.97 mag/sq"
Moon phase:
1%
Moon phase:
1%
Transparency:
Transparent
Transparency:
Transparent
Image of Abell 74Notes: This target is quite large, occupying almost the entire frame; and it is quite dim, almost nvisible. It is basically a flat disk with slightly heavier areas to the S, W and E. The image is quite noisy, and it would take a much longer exposure time to see any structure. I have checked this image against others to confirm that I am seeing real structure and not just artifacts.
Object Name:
Abell 75
IDs:
NGC 7076
RA:
21.4398611
Dec:
62.8922222
Constellation:
Cep
Magnitude:
13.20
Size:
56"
Surface Brightness:
30.57 mag/sq"

L filter:
Abell 75-L.2015.07.26.jpg
Ha filter:
Abell 75-Ha.2015.07.26.jpg
Date:
7/27/2015
Date:
7/27/2015
Time:
1:52 AM
Time:
1:52 AM
Seeing:
FWHM = 4.0"
Seeing:
FWHM = 4.0"
Darkness:
19.51 mag/sq"
Darkness:
19.51 mag/sq"
Moon phase:
78%
Moon phase:
78%
Transparency:
Above average
Transparency:
Above average
Image of Abell 75Notes: A medium sized disk with a slightly heavier rim, especially on the E side. There are two stars within the circumference, neither of which is central. There is also a very dim star that is better centered. This one shows up best in the L picture.
Object Name:
Abell 81
IDs:
RA:
22.7068061
Dec:
80.4424972
Constellation:
Cep
Magnitude:
Size:
0.567
Surface Brightness:

L filter:
Abell 81-L.2015.03.26.jpg

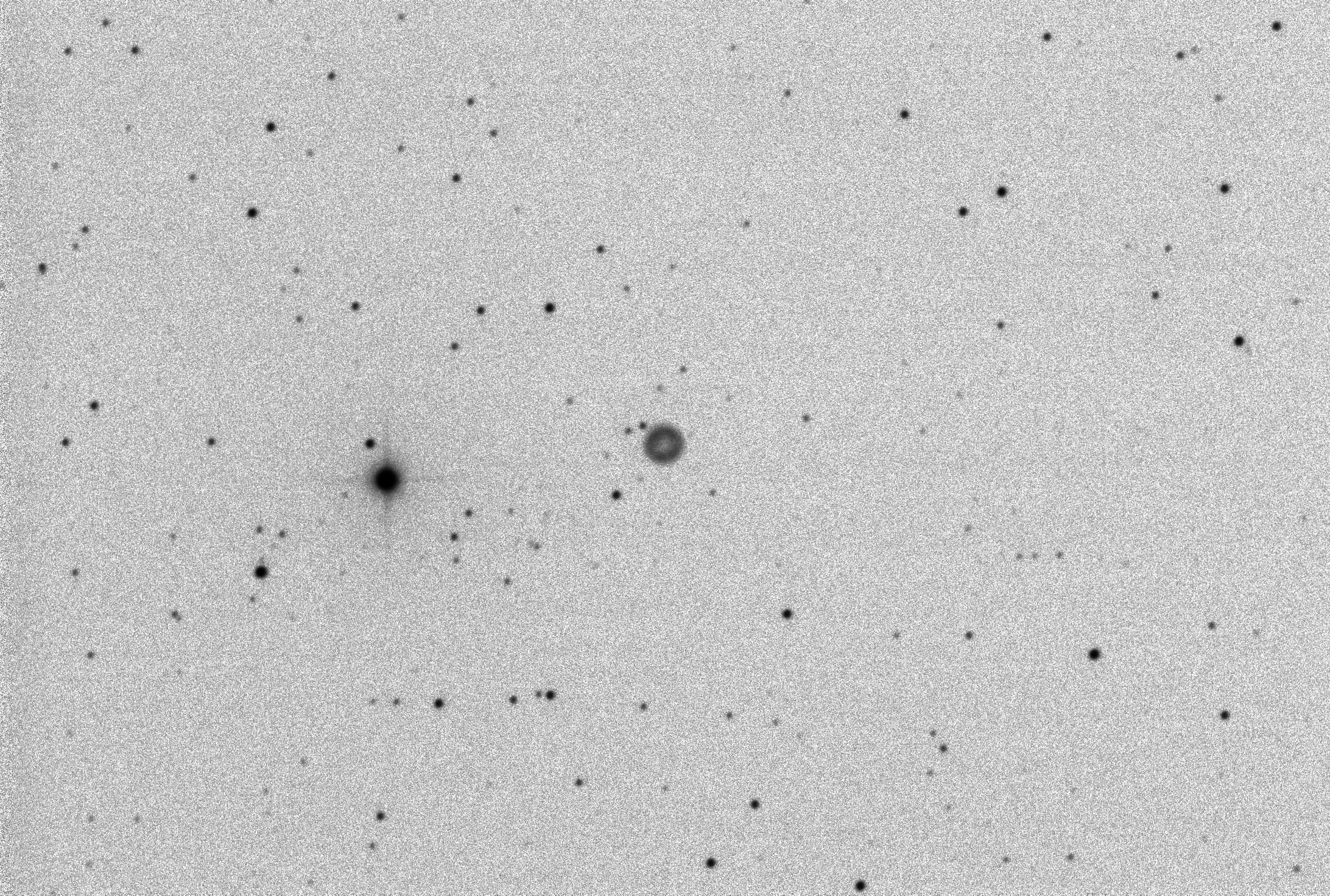

OIII filter:
Abell 81-OIII.2015.03.26.jpg
Date:
3/27/2015
Date:
3/27/2015
Time:
1:28 AM
Time:
1:28 AM
Seeing:
FWHM = 3.9"
Seeing:
FWHM = 3.9"
Darkness:
18.98 mag/sq"
Darkness:
18.98 mag/sq"
Moon phase:
48%
Moon phase:
48%
Transparency:
Above average
Transparency:
Above average
Image of Abell 81Notes: Small thick ring. Visible in the L image, but best in the OIII image. Central star inot visible. (Not submitted.)
Object Name:
Abell 82
IDs:
PK 114-4.1, PN G114.0-04.6
RA:
23.7632778
Dec:
57.0663889
Constellation:
Cas
Magnitude:
15.20
Size:
1.6'
Surface Brightness:
24.85 mag/sq"

L filter:
Abell 82-L.2015.08.05.jpg
OIII filter:
Abell 82-OIII.2015.08.05.jpg
Date:
8/6/2015
Date:
8/6/2015
Time:
3:00 AM
Time:
3:00 AM
Seeing:
FWHM = 4.3"
Seeing:
FWHM = 4.3"
Darkness:
19.27 mag/sq"
Darkness:
19.27 mag/sq"
Moon phase:
61%
Moon phase:
61%
Transparency:
Below average
Transparency:
Below average
Image of Abell 82Notes: Almost featureless medium sized disk, slightly heavier towards the NW and SE sides. Several stars in the area, one of which is well-centered. (Not submitted.)
Object Name:
BD+30 3639
IDs:
Campbell's Hydrogen Star, PK 064-5.1, PN G064.7+05.0
RA:
19.5792222
Dec:
30.5163889
Constellation:
Cyg
Magnitude:
9.60
Size:
35"
Surface Brightness:
25.95 mag/sq"

L filter:
BD+30 3639-L.2015.06.22.jpg
Ha filter:
BD+30 3639-Ha.2015.06.22.jpg
Date:
6/23/2015
Date:
6/23/2015
Time:
2:59 AM
Time:
2:59 AM
Seeing:
FWHM = 4.3"
Seeing:
FWHM = 4.3"
Darkness:
19.77 mag/sq"
Darkness:
19.77 mag/sq"
Moon phase:
38%
Moon phase:
38%
Transparency:
Above average
Transparency:
Above average
Image of BD+30 3639Notes: The only way to know that this isn't a common star is to compare the L and Ha images. In addition, the FWHM for the nebula is much bigger than for its neighboring stars, suggesting that I might have been able to pick out a little structure if the seeing had been better.
Object Name:
Cn 3-1
IDs:
(Cannon), SaSt 2-20
RA:
18.2928056
Dec:
10.1508333
Constellation:
Oph
Magnitude:
12.40
Size:
7"x6"
Surface Brightness:
25.09 mag/sq"

L filter:
Cn 3-1-L.2015.06.23.jpg
Ha filter:
Cn 3-1-Ha.2015.06.23.jpg
Date:
6/24/2015
Date:
6/24/2015
Time:
12:34 AM
Time:
12:34 AM
Seeing:
FWHM = 5.5"
Seeing:
FWHM = 5.5"
Darkness:
19.54 mag/sq"
Darkness:
19.54 mag/sq"
Moon phase:
46%
Moon phase:
46%
Transparency:
Transparent
Transparency:
Transparent
Image of Cn 3-1Notes: Almost stellar. The nebula's FWHM is jsut slightly larger than surrounding stars. If the seeing had been better, this effect might have been more noticeable, and I might have seen some structure. No central star of course.
Object Name:
DdDm 1
IDs:
(Dolidze+Dzimselejsvili), KO 1
RA:
16.6717222
Dec:
38.7055556
Constellation:
Her
Magnitude:
13.30
Size:
10"
Surface Brightness:
26.93 mag/sq"

L filter:
DdDm 1-L.2015.03.19.jpg
Ha filter:
DdDm 1-Ha.2015.03.19.jpg
Date:
3/20/2015
Date:
3/20/2015
Time:
2:53 PM
Time:
2:53 PM
Seeing:
FWHM = 3.9"
Seeing:
FWHM = 3.9"
Darkness:
19.52 mag/sq"
Darkness:
19.52 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Above average
Transparency:
Above average
Image of DdDm 1Notes: Stellar.The only way to know that this isn't a common star is to compare the L and Ha images.
Object Name:
DeHt 5
IDs:
(Dengel+Hartl)
RA:
22.3260278
Dec:
70.9341667
Constellation:
Cep
Magnitude:
12.50
Size:
11' x 9'
Surface Brightness:
26.12 mag/sq"

L filter:
DeHt 5-L.2015.04.14.jpg
Ha filter:
DeHt 5-Ha.2015.04.14.jpg
Date:
4/15/2015
Date:
4/15/2015
Time:
12:30 AM
Time:
12:30 AM
Seeing:
FWHM = 4.4"
Seeing:
FWHM = 4.4"
Darkness:
18.89 mag/sq"
Darkness:
18.49 mag/sq"
Moon phase:
19%
Moon phase:
19%
Transparency:
Average
Transparency:
Average
Image of DeHt 5Notes: Very diffuse and dim cloud. Could be part of a broken circle with only the NW arc remaining. Many stars, one of which seems to be roughly where the center of the circle would be.
Object Name:
EGB 1
IDs:
(Ellis+Grayson+Bond), LBN 624
RA:
1.1187778
Dec:
73.5563889
Constellation:
Cas
Magnitude:
12.50
Size:
270"
Surface Brightness:
33.29 mag/sq"

L filter:
EGB 1-L.2015.04.14.jpg
Ha filter:
EGB 1-Ha.2015.04.14.jpg
Date:
4/14/2015
Date:
4/14/2015
Time:
9:43 PM
Time:
9:43 PM
Seeing:
FWHM = 4.8"
Seeing:
FWHM = 4.8"
Darkness:
18.37 mag/sq"
Darkness:
18.37 mag/sq"
Moon phase:
20%
Moon phase:
20%
Transparency:
Average
Transparency:
Average
Image of EGB 1Notes: Large diffuse dome-shaped object, with peak of dome facing SE. Many stars nearby, several of which could be the original central star.
Object Name:
EGB 6
IDs:
(Ellis+Grayson+Bond)
RA:
9.8830556
Dec:
13.7430556
Constellation:
Leo
Magnitude:
10.40
Size:
12'
Surface Brightness:
24.42 mag/sq"

L filter:
EGB 6-L.2015.02.24.jpg
Ha filter:
EGB 6-Ha.2015.02.24.jpg
Date:
2/23/2015
Date:
2/23/2015
Time:
11:02 PM
Time:
11:02 PM
Seeing:
FWHM = 3.4"
Seeing:
FWHM = 3.4"
Darkness:
19.37 mag/sq"
Darkness:
19.37 mag/sq"
Moon phase:
32%
Moon phase:
32%
Transparency:
Above average
Transparency:
Above average
Image of EGB 6Notes: Extremely faint ring shape. This target required a great deal of post-processing to reveal even the slightest hint of a nebula. I have compared it to other pictures on the web, most notably at http://astro.neutral.org/imagehtml/20120225-egb6.html; so there is no doubt that the photograph is correct. The ring is heaviest in the SW, but does continue full circle if one looks closely. Many stars in the area, so it's not obvious which if any is the central star. This image was done with only a half-hour total exposure time. It needs to be redone with several hours to make a truly convincing case.
Object Name:
HDW 3
IDs:
(Hartl+Dengel+Weinberger)
RA:
3.4542778
Dec:
45.4055556
Constellation:
Per
Magnitude:
12.50
Size:
9'
Surface Brightness:
25.90 mag/sq"

L filter:
HDW 3-L.2015.02.18.jpg
Ha filter:

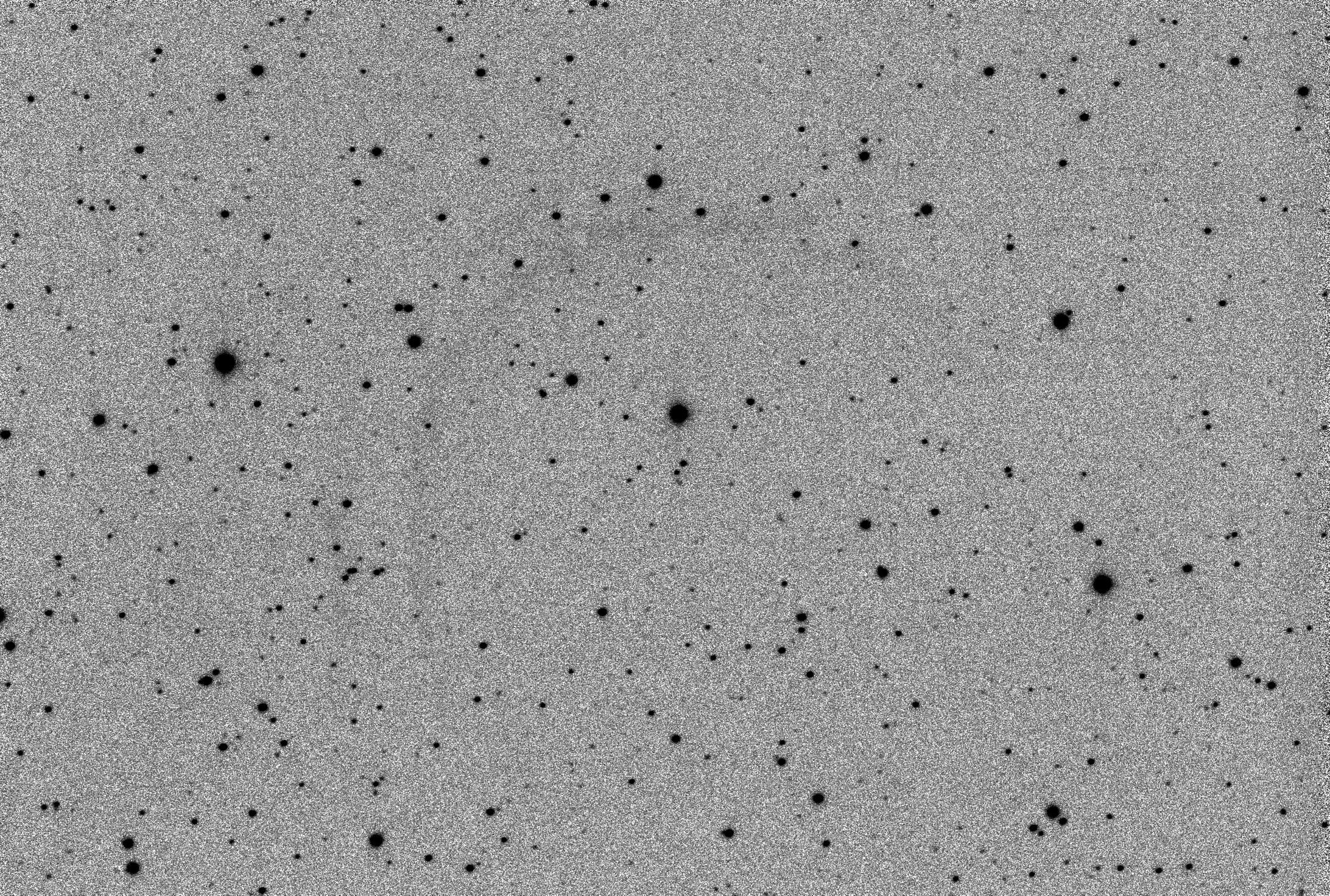

HDW 3-Ha.2015.02.18.jpg
Date:
2/18/2015
Date:
2/18/2015
Time:
7:10 PM
Time:
7:10 PM
Seeing:
FWHM = 2.8"
Seeing:
FWHM = 2.8"
Darkness:
18.88 mag/sq"
Darkness:
18.88 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Average
Transparency:
Average
Image of HDW 3Notes: A large broken crescent, heavy on the NE side, and nearly invisible on the SW. Many stars in the area, so it's not obvious which one would be the central star.
Object Name:
He 2-459
IDs:
(Henize), VES 123
RA:
20.23275
Dec:
29.5655556
Constellation:
Cyg
Magnitude:
9.80
Size:
5"
Surface Brightness:
21.92 mag/sq"

L filter:
He 2-459-L.2015.07.10.jpg
Ha filter:
He 2-459-Ha.2015.07.10.jpg
Date:
7/11/2015
Date:
7/11/2015
Time:
12:24 AM
Time:
12:24 AM
Seeing:
FWHM = 2.7"
Seeing:
FWHM = 2.7"
Darkness:
19.66 mag/sq"
Darkness:
19.66 mag/sq"
Moon phase:
27%
Moon phase:
27%
Transparency:
Below Average
Transparency:
Below Average
Image of He 2-459Notes: The only way to know that this isn't a common star is to compare the L and Ha images. The target has FWHM=2.9" which is essentially identical to neighboring stars.
Object Name:
Hu 1-2
IDs:
Baby Dumbbell, PK 086-8.1, PN G086.5-08.8
RA:
21.5523333
Dec:
39.6361111
Constellation:
Cyg
Magnitude:
12.70
Size:
32"
Surface Brightness:
28.85 mag/sq"

L filter:
Hu 1-2-L.2014.11.25.jpg
OIII filter:
Hu 1-2-O-III.2014.11.25.jpg
Date:
11/25/2014
Date:
11/25/2014
Time:
7:46 PM
Time:
7:46 PM
Seeing:
FWHM = 3.0"
Seeing:
FWHM = 3.0"
Darkness:
19.09 mag/sq"
Darkness:
19.09 mag/sq"
Moon phase:
13%
Moon phase:
13%
Transparency:
Above average
Transparency:
Above average
Image of Hu 1-2Notes: Object is just slightly bigger than stellar. Appears to be two lobes in a figure eight shape oriented NW-SW. This shows up best in the L pictures.
Object Name:
Hu 2-1
IDs:
(Humason), VV' 458
RA:
18.8298889
Dec:
20.8441667
Constellation:
Her
Magnitude:
11.60
Size:
2.6"
Surface Brightness:
22.30 mag/sq"

L filter:
Hu 2-1-L.2015.06.22.jpg
Ha filter:
Hu 2-1-Ha.2015.06.22.jpg
Date:
6/23/2015
Date:
6/23/2015
Time:
1:40 AM
Time:
1:40 AM
Seeing:
FWHM = 4.2"
Seeing:
FWHM = 4.2"
Darkness:
19.71 mag/sq"
Darkness:
19.71 mag/sq"
Moon phase:
37%
Moon phase:
37%
Transparency:
Above average
Transparency:
Above average
Image of Hu 2-1Notes: The only way to know that this isn't a common star is to compare the L and Ha images.
Object Name:
IC 289
IDs:
PK 138-2.1, PN G138.8+02.8
RA:
3.1720278
Dec:
61.3169444
Constellation:
Cas
Magnitude:
12.00
Size:
45"
Surface Brightness:
28.89 mag/sq"

L filter:
IC 289-L.2015.02.13.jpg
OIII filter:
IC 289-OIII.2015.02.13.jpg
Date:
2/13/2015
Date:
2/13/2015
Time:
8:20 PM
Time:
8:20 PM
Seeing:
FWHM = 3.0"
Seeing:
FWHM = 3.0"
Darkness:
18.62 mag/sq"
Darkness:
18.62 mag/sq"
Moon phase:
33%
Moon phase:
33%
Transparency:
Above average
Transparency:
Above average

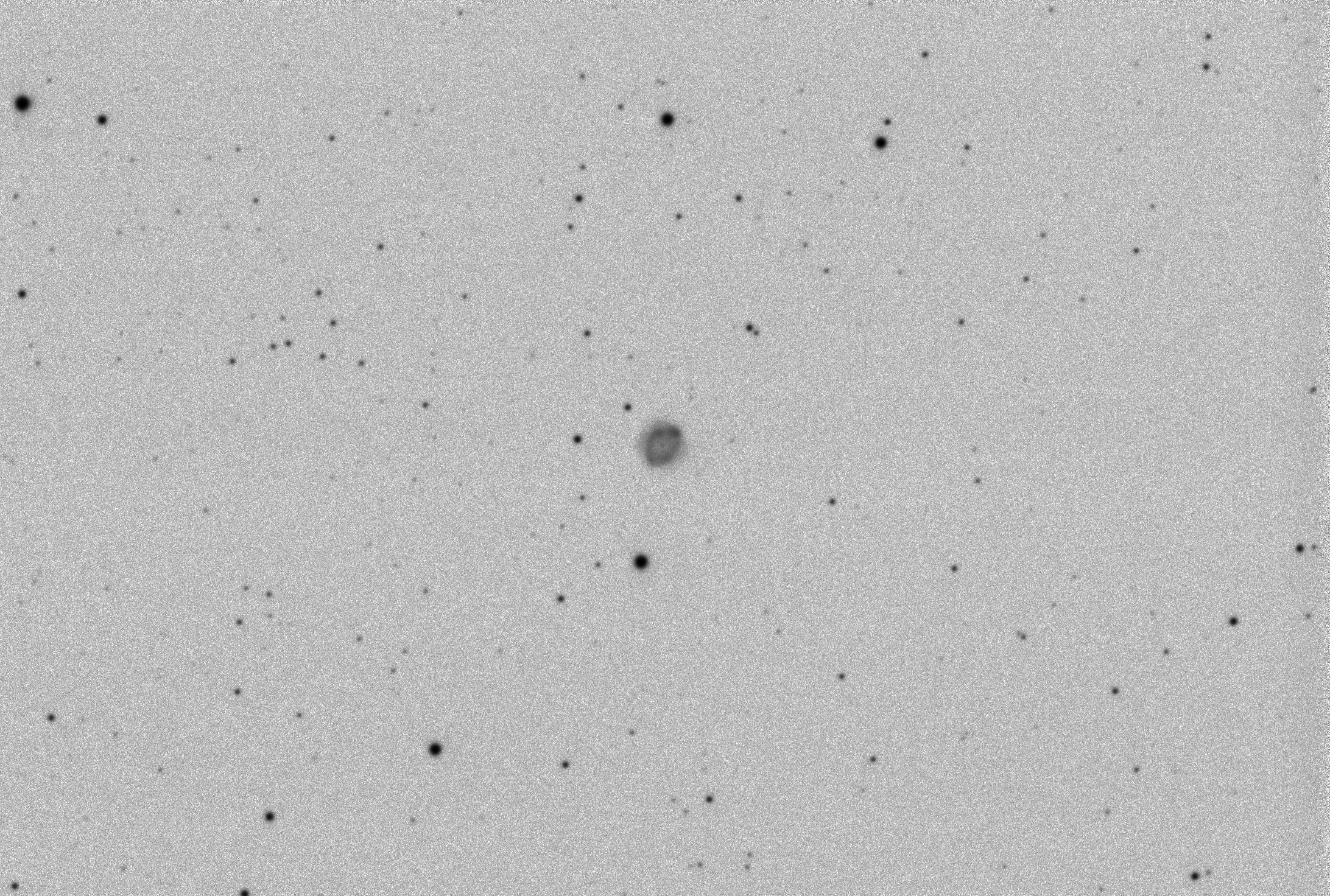

Image of IC 289Notes: Oval ring oriented NW/SE, with very clear central star. The ring has a knotty structure that is especially heavy on the NW side. This target shows up well with the Ha filter too.
Object Name:
IC 351
IDs:
PK 159-15.1, PN G159.0-15.1
RA:
3.7925278
Dec:
35.0469444
Constellation:
Per
Magnitude:
11.90
Size:
8.0"
Surface Brightness:
25.04 mag/sq"

L filter:
IC 351-L.2014.11.25.jpg
OIII filter:
IC 351-O-III.2014.11.25.jpg
Date:
11/25/2014
Date:
11/25/2014
Time:
11:38 PM
Time:
11:38 PM
Seeing:
FWHM = 2.9"
Seeing:
FWHM = 2.9"
Darkness:
19.87 mag/sq"
Darkness:
19.87 mag/sq"
Moon phase:
14%
Moon phase:
14%
Transparency:
Above average
Transparency:
Above average
Image of IC 351Notes: Stellar. The only way to know that this isn't a common star is to compare the L and OIII images.
Object Name:
IC 2003
IDs:
PK 161-14.1, PN G161.2-14.8
RA:
3.9394444
Dec:
33.8752778
Constellation:
Per
Magnitude:
12.60
Size:
11.0"
Surface Brightness:
26.44 mag/sq"

L filter:
IC 2003-L.2014.11.25.jpg
OIII filter:
IC 2003-O-III.2014.11.25.jpg
Date:
11/25/2014
Date:
11/25/2014
Time:
10:59 PM
Time:
10:59 PM
Seeing:
FWHM = 2.3"
Seeing:
FWHM = 2.3"
Darkness:
19.71 mag/sq"
Darkness:
19.71 mag/sq"
Moon phase:
14%
Moon phase:
14%
Transparency:
Above average
Transparency:
Above average
Image of IC 2003Notes: Stellar. The only way to know that this isn't a common star is to compare the L and OIII images.
Object Name:
IC 2149
IDs:
PK 166-10.1, PN G166.1+10.4
RA:
5.9399722
Dec:
46.1047222
Constellation:
Aur
Magnitude:
10.60
Size:
12"
Surface Brightness:
24.62 mag/sq"

L filter:
IC 2149-L.2014.11.25.jpg
OIII filter:
IC 2149-O-III.2014.11.25.jpg
Date:
11/25/2014
Date:
11/25/2014
Time:
7:07 PM
Time:
7:07 PM
Seeing:
FWHM = 4.3"
Seeing:
FWHM = 4.3"
Darkness:
18.55 mag/sq"
Darkness:
18.55 mag/sq"
Moon phase:
13%
Moon phase:
13%
Transparency:
Above average
Transparency:
Above average
Image of IC 2149Notes: Nearly stellar, but slightly oblong in the horizontal direction.
Object Name:
IC 3568
IDs:
Baby Eskimo, PK 123-34.1, PN G123.6+34.5
RA:
12.5518889
Dec:
82.5638889
Constellation:
Cam
Magnitude:
11.60
Size:
18"
Surface Brightness:
26.50 mag/sq"

L filter:
IC 3568-L.2015.03.19.jpg
Ha filter:
IC 3568-Ha.2015.03.19.jpg
Date:
3/19/2015
Date:
3/19/2015
Time:
11:13 PM
Time:
11:13 PM
Seeing:
FWHM = 3.7"
Seeing:
FWHM = 3.7"
Darkness:
19.15 mag/sq"
Darkness:
19.15 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Above average
Transparency:
Above average
Image of IC 3568Notes: Stellar in appearance, but rather broader. The only way to know that this isn't a common star is to compare the L and Ha images.
Object Name:
IC 4593
IDs:
White Eyed Pea, PK 025-40.1, PN G025.3+40.8
RA:
16.1956944
Dec:
12.0713889
Constellation:
Her
Magnitude:
11.00
Size:
12"
Surface Brightness:
25.02 mag/sq"

L filter:
IC 4593-L.2015.03.26.jpg
OIII filter:
IC 4593-OIII.2015.03.26.jpg
Date:
3/27/2015
Date:
3/27/2015
Time:
3:55 AM
Time:
3:55 AM
Seeing:
FWHM = 3.3"
Seeing:
FWHM = 3.3"
Darkness:
19.80 mag/sq"
Darkness:
19.80 mag/sq"
Moon phase:
49%
Moon phase:
49%
Transparency:
Above average
Transparency:
Above average
Image of IC 4593Notes: Nearly stellar. The only way to know that this isn't a common star is to compare the L and OIII images.
Object Name:
IC 4997
IDs:
PK 058-10.1, PN G058.3-10.9
RA:
20.33575
Dec:
16.7316667
Constellation:
Sge
Magnitude:
11.30
Size:
2.0"
Surface Brightness:
21.43 mag/sq"

L filter:
IC 4997-L.2015.07.26.jpg
Ha filter:
IC 4997-Ha.2015.07.26.jpg
Date:
7/27/2015
Date:
7/27/2015
Time:
12:32 AM
Time:
12:32 AM
Seeing:
FWHM = 4.8"
Seeing:
FWHM = 4.8"
Darkness:
19.17 mag/sq"
Darkness:
19.17 mag/sq"
Moon phase:
77%
Moon phase:
77%
Transparency:
Above average
Transparency:
Above average
Image of IC 4997Notes: This object's diameter is 2", so there is no way to resolve any detail. The only way to know that this isn't a common star is to compare the object's brightness in the L and Ha images.
Object Name:
IC 5117
IDs:
PK 089-5.1, PN G089.8-05.1
RA:
21.5419444
Dec:
44.5969444
Constellation:
Cyg
Magnitude:
13.30
Size:
2.0"
Surface Brightness:
23.43 mag/sq"

L filter:
IC 5117-L.2014.11.25.jpg
OIII filter:
IC 5117-O-III.2014.11.25.jpg
Date:
11/25/2014
Date:
11/25/2014
Time:
8:25 PM
Time:
8:25 PM
Seeing:
FWHM = 3.2"
Seeing:
FWHM = 3.2"
Darkness:
18.98 mag/sq"
Darkness:
18.98 mag/sq"
Moon phase:
13%
Moon phase:
13%
Transparency:
Above average
Transparency:
Above average
Image of IC 5117Notes: Stellar. The only way to know that this isn't a common star is to compare the L and OIII images.
Object Name:
IC 5217
IDs:
PK 100-5.1, PN G100.6-05.4
RA:
22.3988056
Dec:
50.9666667
Constellation:
Lac
Magnitude:
12.60
Size:
7.5"
Surface Brightness:
25.60 mag/sq"

L filter:
IC 5217-L.2014.11.25.jpg
OIII filter:
IC 5217-O-III.2014.11.25.jpg
Date:
11/25/2014
Date:
11/25/2014
Time:
10:21 PM
Time:
10:21 PM
Seeing:
FWHM = 3.1"
Seeing:
FWHM = 3.1"
Darkness:
19.02 mag/sq"
Darkness:
19.02 mag/sq"
Moon phase:
14%
Moon phase:
14%
Transparency:
Above average
Transparency:
Above average
Image of IC 5217Notes: Stellar. The only way to know that this isn't a common star is to compare the L and OIII images.
Object Name:
JnEr 1
IDs:
Headphones Nebula, PK 164-31.1, PN G164.8+31.1
RA:
7.9643333
Dec:
53.4213889
Constellation:
Lyn
Magnitude:
16.80
Size:
6.3'
Surface Brightness:
29.43 mag/sq"

L filter:
JnEr 1-L.2015.02.15.jpg
Ha filter:
JnEr 1-Ha.2015.02.15.jpg
Date:
2/16/2015
Date:
2/16/2015
Time:
1:25 AM
Time:
1:25 AM
Seeing:
FWHM = 3.6"
Seeing:
FWHM = 3.6"
Darkness:
19.41 mag/sq"
Darkness:
19.41 mag/sq"
Moon phase:
12%
Moon phase:
12%
Transparency:
Above average
Transparency:
Above average
Image of JnEr 1Notes: Large ring-like shape with pinched middle, giving the appearance of an hour glass or figure eight. Very weakly visible in L picture. Slightly better in OIII, but best in Ha. A central star is visible in the L picture.
Object Name:
Jonckheere 320
IDs:
J 320, PK 190-17.1, PN G190.3-17.7
RA:
5.0928611
Dec:
10.7063889
Constellation:
Ori
Magnitude:
12.90
Size:
26"
Surface Brightness:
28.60 mag/sq"

L filter:
Jonckheere 320-L.2014.12.22.jpg
OIII filter:
Jonckheere 320-OIII.2014.12.22.jpg
Date:
12/22/2014
Date:
12/22/2014
Time:
11:22 PM
Time:
11:22 PM
Seeing:
FWHM = 3.1"
Seeing:
FWHM = 3.1"
Darkness:
20.20 mag/sq"
Darkness:
20.20 mag/sq"
Moon phase:
1%
Moon phase:
1%
Transparency:
Average
Transparency:
Average
Image of Jonckheere 320Notes: Small slightly oblong in NW/SE direction. Almost stellar, so the only way to know that this isn't a common star is to compare the L and OIII images. No sign of a central star of course.
Object Name:
Jonckheere 900
IDs:
J-900, PK 194-2.1, PN G194.2+02.5
RA:
6.4325833
Dec:
17.7908333
Constellation:
Gem
Magnitude:
12.40
Size:
12"
Surface Brightness:
26.42 mag/sq"

L filter:
Jonckheere 900-L.2014.12.22.jpg
OIII filter:
Jonckheere 900-OIII.2014.12.22.jpg
Date:
12/23/2014
Date:
12/23/2014
Time:
12:44 AM
Time:
12:44 AM
Seeing:
FWHM = 3.3"
Seeing:
FWHM = 3.3"
Darkness:
20.64 mag/sq"
Darkness:
20.64 mag/sq"
Moon phase:
1%
Moon phase:
1%
Transparency:
Average
Transparency:
Average
Image of Jonckheere 900Notes: Stellar. The only way to know that this isn't a common star is to compare the L and OIII images. There are hints of a much bigger disk shape, but these could just be artifacts.
Object Name:
Jones 1
IDs:
PK 104-29.1, PN G104.2-29.6
RA:
23.5981389
Dec:
30.4683333
Constellation:
Peg
Magnitude:
Size:
5.3'
Surface Brightness:

L filter:
Jones 1-L.2015.08.11.jpg
Ha filter:
Jones 1-Ha.2015.08.11.jpg
Date:
8/12/2015
Date:
8/12/2015
Time:
2:34 AM
Time:
2:34 AM
Seeing:
FWHM = 4.0"
Seeing:
FWHM = 4.0"
Darkness:
19.89 mag/sq"
Darkness:
19.89 mag/sq"
Moon phase:
6%
Moon phase:
6%
Transparency:
Above average
Transparency:
Above average
Image of Jones 1Notes: Large fairly uniform disk, but with heavier parts on the NNW and SSE. These areas seem somewhat indented from the rest of the expansion front, so perhaps the material was slowed down. There is also one heavier area to the S and outside the main disk. This could be an artifact or the debris from an earlier expansion.
Object Name:
K2-2
IDs:
(Kohoutek), LBN 926
RA:
6.8731111
Dec:
9.9655556
Constellation:
Mon
Magnitude:
12.50
Size:
6.9'
Surface Brightness:
25.32 mag/sq"

L filter:
Ha filter:
Date:
2/15/2015
Date:
2/15/2015
Time:
10:54 PM
Time:
10:54 PM
Seeing:
FWHM = 3.1"
Seeing:
FWHM = 3.1"
Darkness:
18.62 mag/sq"
Darkness:
18.62 mag/sq"
Moon phase:
13%
Moon phase:
13%
Transparency:
Above average
Transparency:
Above average
Image of K2-2Notes: Large but very dim crescent shape, suggesting that one half of a ring has disappeared over the years. Many stars in the area, but it isn't obvious which one (if any) is the central star. Not visible in L and OIII pictures.
Object Name:
LoTr 5
IDs:
(Longmore+Tritton), IN Com
RA:
12.9260278
Dec:
25.8919444
Constellation:
Com
Magnitude:
Size:
9'
Surface Brightness:

L filter:
LoTr 5-L.2015.03.19.jpg
OIII filter:
LoTr 5-OIII.2015.03.26.jpg
Date:
3/20/2015
Date:
3/26/2015
Time:
12:26 AM
Time:
10:56 PM
Seeing:
FWHM = 3.2"
Seeing:
FWHM = 3.2"
Darkness:
19.25 mag/sq"
Darkness:
19.55 mag/sq"
Moon phase:
0%
Moon phase:
46%
Transparency:
Above average
Transparency:
Above average
Image of LoTr 5Notes: A large extremely faint uniform disk, not quite centered perfectly on the central star. This target was not visible using an Ha filter. Unlike most pictures, I took twelve 5-minute exposures to capture the OIII image.
Object Name:
M 1-4
IDs:
(Minkowski)
RA:
3.6953889
Dec:
52.2833333
Constellation:
Per
Magnitude:
13.60
Size:
4"
Surface Brightness:
25.24 mag/sq"

L filter:
M 1-4-L.2015.01.13.jpg
OIII filter:
M 1-4-OIII.2015.01.13.jpg
Date:
1/13/2015
Date:
1/13/2015
Time:
8:11 PM
Time:
8:11 PM
Seeing:
FWHM = 5.6"
Seeing:
FWHM = 5.6"
Darkness:
19.38 mag/sq"
Darkness:
19.38 mag/sq"
Moon phase:
46%
Moon phase:
46%
Transparency:
Above average
Transparency:
Above average
Image of M 1-4Notes: Stellar. The only way to know that this isn't a common star is to compare the L and OIII images.
Object Name:
M 1-7
IDs:
PK 189-7.1, PN G189.8+07.7
RA:
6.6225
Dec:
24.0097222
Constellation:
Gem
Magnitude:
13.00
Size:
38"
Surface Brightness:
29.53 mag/sq"

L filter:
M 1-7-L.2015.01.13.jpg
OIII filter:
M 1-7-OIII.2015.01.13.jpg
Date:
1/13/2015
Date:
1/13/2015
Time:
10:40 PM
Time:
10:40 PM
Seeing:
FWHM = 3.4"
Seeing:
FWHM = 3.4"
Darkness:
19.69 mag/sq"
Darkness:
19.69 mag/sq"
Moon phase:
45%
Moon phase:
45%
Transparency:
Above average
Transparency:
Above average
Image of M 1-7Notes: Almost stellar. Slight oblong in the NW/SE direction is apparent in both L and OIII pix. There's nothing in the picture to identify this as an actual planetary nebula.
Object Name:
M 1-79
IDs:
(Minkowski)
RA:
21.6170833
Dec:
48.9341667
Constellation:
Cyg
Magnitude:
13.20
Size:
38" x 27"
Surface Brightness:
29.36 mag/sq"

L filter:
M 1-79-L.2015.07.16.jpg
Ha filter:

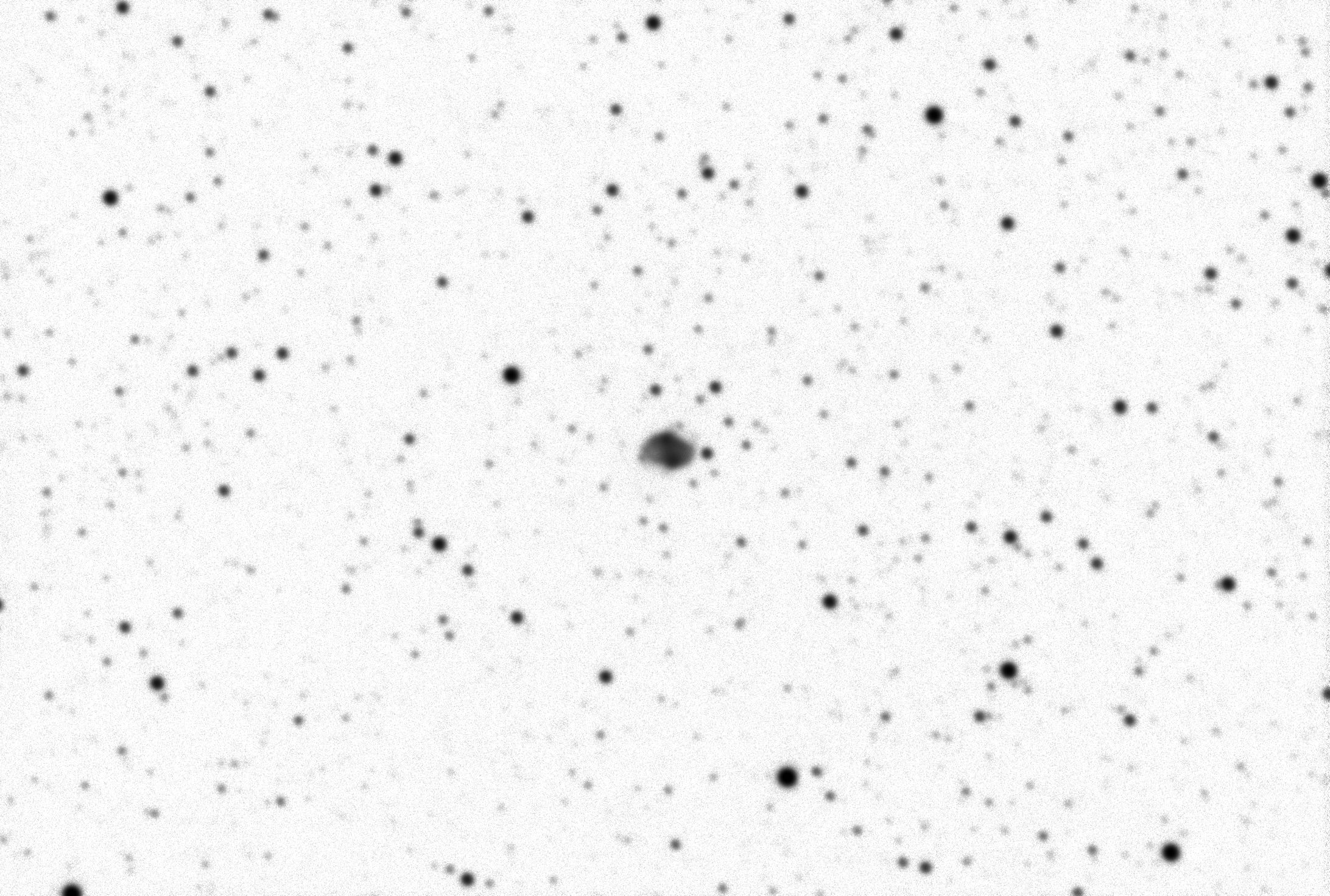

M 1-79-Ha.2015.07.16.jpg
Date:
7/17/2015
Date:
7/17/2015
Time:
1:41 AM
Time:
1:41 AM
Seeing:
FWHM = 6.1"
Seeing:
FWHM = 6.1"
Darkness:
19.92 mag/sq"
Darkness:
19.92 mag/sq"
Moon phase:
1%
Moon phase:
1%
Transparency:
Transparent
Transparency:
Transparent
Image of M 1-79Notes: Oval oriented E/W with heavy parts in the N and S. Central star not apparent.
Object Name:
Me 2-2
IDs:
(Merrill), PK 100-8.1
RA:
22.5288056
Dec:
47.8011111
Constellation:
Lac
Magnitude:
11.90
Size:
5"
Surface Brightness:
24.02 mag/sq"

L filter:
Me 2-2-L.2015.07.17.jpg
Ha filter:
Me 2-2-Ha.2015.07.17.jpg
Date:
7/18/2015
Date:
7/18/2015
Time:
2:59 AM
Time:
2:59 AM
Seeing:
FWHM = 6.4"
Seeing:
FWHM = 6.4"
Darkness:
19.88 mag/sq"
Darkness:
19.88 mag/sq"
Moon phase:
4%
Moon phase:
4%
Transparency:
Average
Transparency:
Average
Image of Me 2-2Notes: Stellar. The only way to know that this isn't a common star is to compare the L and Ha images. The nebula might have a slightly larger diameter than surrounding stars, but we would need much better seeing to be sure.
Object Name:
NGC 40
IDs:
Bowtie Nebula, Caldwell 2, PK 120-9.1, PN G120.0+09.8
RA:
0.2169444
Dec:
72.5219444
Constellation:
Cep
Magnitude:
10.70
Size:
1.0'
Surface Brightness:
19.33 mag/sq"

L filter:
NGC 40-L.2014.12.22.jpg
OIII filter:
NGC 40-OIII.2014.12.22.jpg
Date:
12/22/2014
Date:
12/22/2014
Time:
6:26 PM
Time:
6:26 PM
Seeing:
FWHM = 3.0"
Seeing:
FWHM = 3.0"
Darkness:
19.19 mag/sq"
Darkness:
19.19 mag/sq"
Moon phase:
1%
Moon phase:
1%
Transparency:
Average
Transparency:
Average
Image of NGC 40Notes: Roughly circular shell, with central star visible. L filter shows that the outer regions are somewhat broken, while OIII shows the central area best, which shows little mottling.
Object Name:
NGC 650
IDs:
Little Dumbbell, M 76, PN G130.9-10.5
RA:
1.7055278
Dec:
51.5752778
Constellation:
Per
Magnitude:
10.10
Size:
2.7'
Surface Brightness:
20.89 mag/sq"

L filter:
NGC 650-L.2014.12.22.jpg
OIII filter:
NGC 650-OIII.2014.12.22.jpg
Date:
12/22/2014
Date:
12/22/2014
Time:
7:38 PM
Time:
7:38 PM
Seeing:
FWHM = 2.4"
Seeing:
FWHM = 2.4"
Darkness:
19.44 mag/sq"
Darkness:
19.44 mag/sq"
Moon phase:
1%
Moon phase:
1%
Transparency:
Average
Transparency:
Average
Image of NGC 650Notes: The "Little Dumbell" shape is clear especially with the OIII filter. Central region has a rectangular shape and is more prominent, while the outer "wings" of the dumbell look a little like shells. Central star not visible.
Object Name:
NGC 1501
IDs:
Oyster Nebula, PK 144-6.1, PN G144.5+06.5
RA:
4.1164444
Dec:
60.9205556
Constellation:
Cam
Magnitude:
12.00
Size:
56"
Surface Brightness:
29.37 mag/sq"

L filter:
NGC 1501-L.2014.12.22.jpg
OIII filter:
NGC 1501-OIII.2014.12.22.jpg
Date:
12/22/2014
Date:
12/22/2014
Time:
10:09 PM
Time:
10:09 PM
Seeing:
FWHM = 2.7"
Seeing:
FWHM = 2.7"
Darkness:
20.05 mag/sq"
Darkness:
20.05 mag/sq"
Moon phase:
1%
Moon phase:
1%
Transparency:
Average
Transparency:
Average

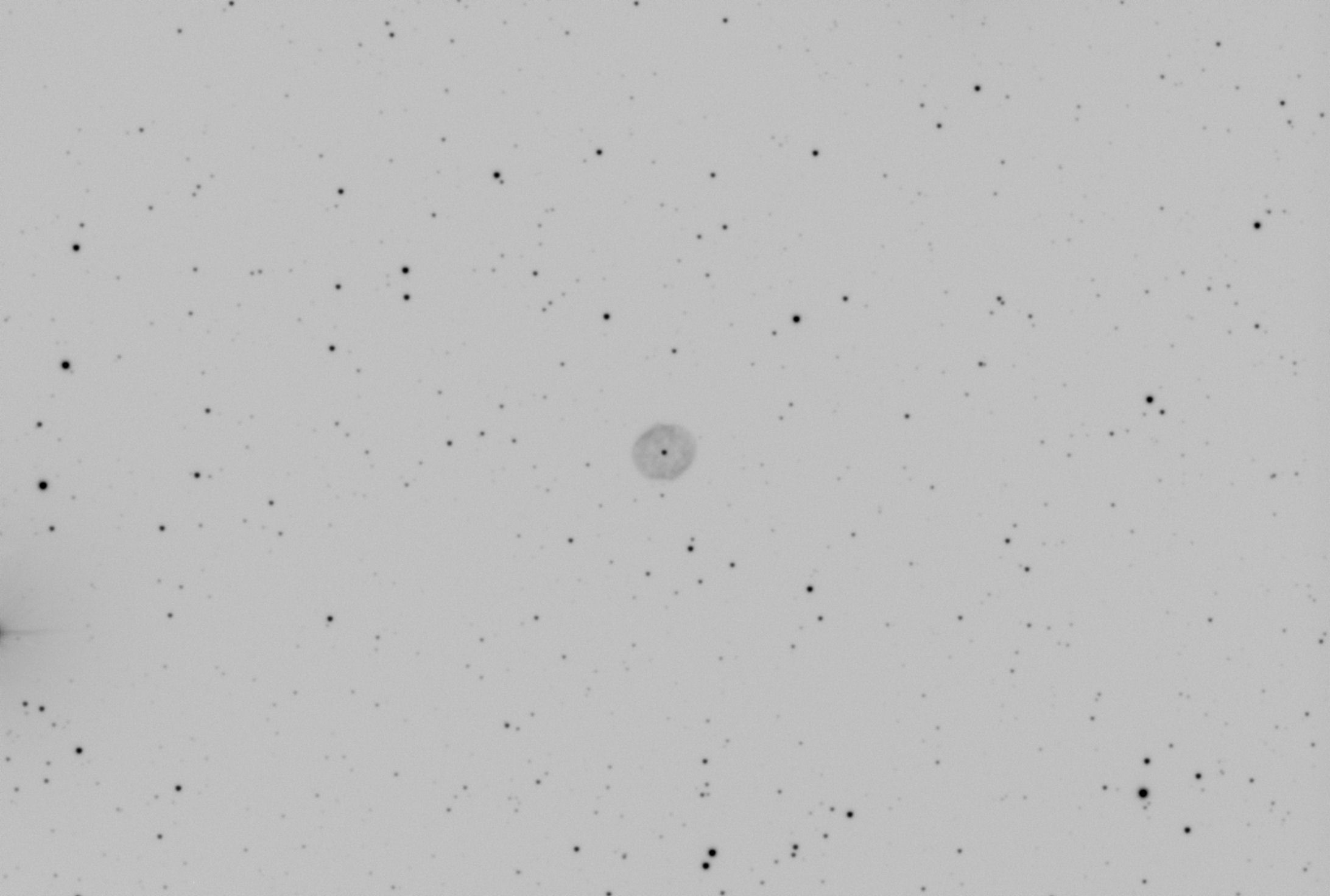

Image of NGC 1501Notes: Roughly uniform disk, with a very prominent central star. Outer edge of disk is slightly prominent, and central area is slightly mottled.
Object Name:
NGC 1514
IDs:
Crystal Ball Nebula, PK 165-15.1, PN G165.5-15.2
RA:
4.1547222
Dec:
30.7758333
Constellation:
Tau
Magnitude:
10.80
Size:
2.0'
Surface Brightness:
20.93 mag/sq"

L filter:
NGC 1514-L.2014.11.25.jpg
OIII filter:

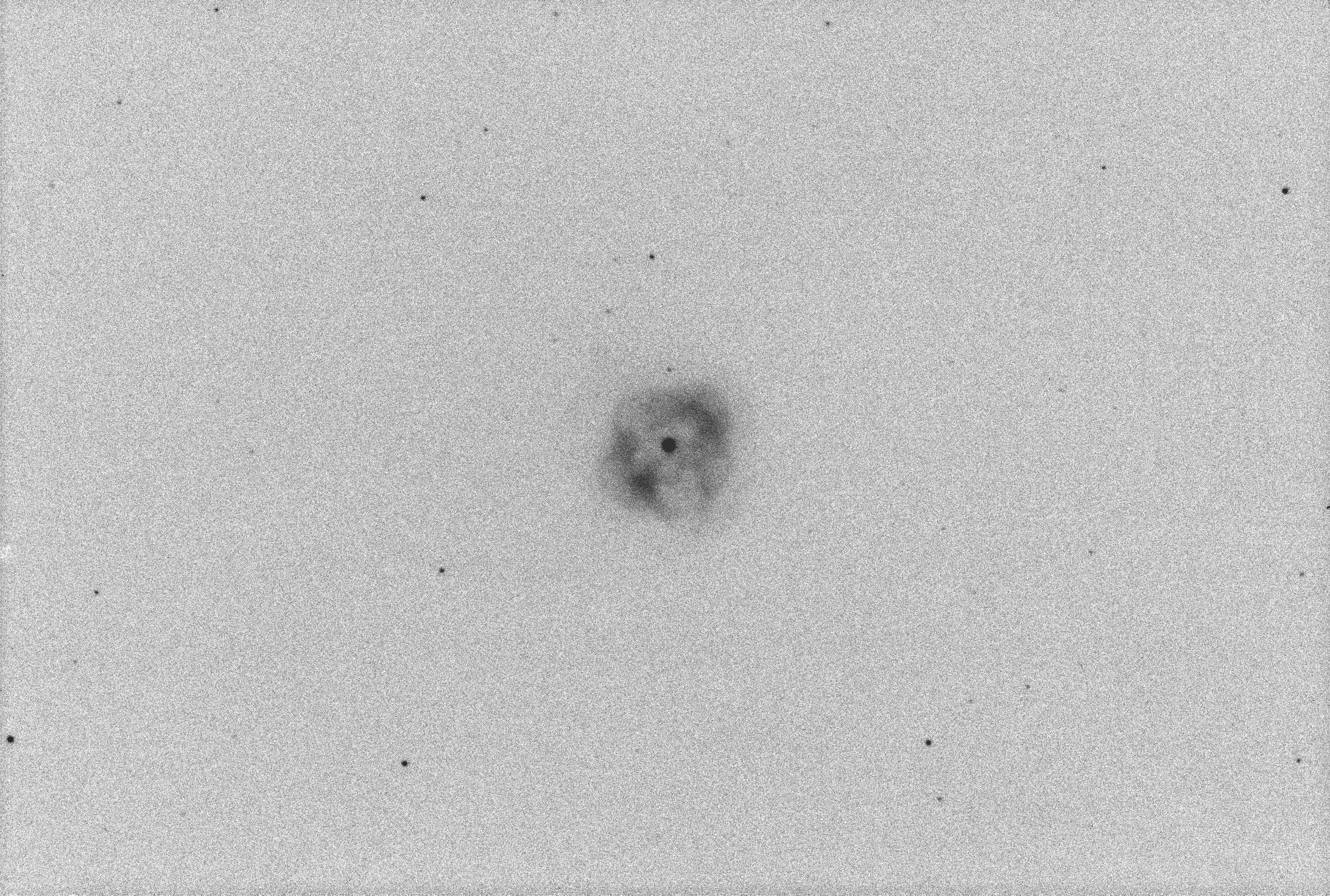

NGC 1514-O-III.2014.11.25.jpg
Date:
11/26/2014
Date:
11/26/2014
Time:
12:17 AM
Time:
12:17 AM
Seeing:
FWHM = 2.4"
Seeing:
FWHM = 2.4"
Darkness:
19.93 mag/sq"
Darkness:
19.93 mag/sq"
Moon phase:
15%
Moon phase:
15%
Transparency:
Above average
Transparency:
Above average
Image of NGC 1514Notes: Large well-defined nebula, Looks like a flower, perhaps a pansy. Very bright star in center seems too bright to be part of nebula.
Object Name:
NGC 2022
IDs:
PK 196-10.1, PN G196.6-10.9
RA:
5.7017222
Dec:
9.0863889
Constellation:
Ori
Magnitude:
11.70
Size:
28"
Surface Brightness:
27.56 mag/sq"

L filter:
NGC 2022-L.2015.01.20.jpg
OIII filter:
NGC 2022-OIII.2015.01.20.jpg
Date:
1/20/2015
Date:
1/20/2015
Time:
9:12 PM
Time:
9:12 PM
Seeing:
FWHM = 2.3"
Seeing:
FWHM = 2.3"
Darkness:
19.22 mag/sq"
Darkness:
19.22 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Average
Transparency:
Average
Image of NGC 2022Notes: Details show best in the L picture.Slight oval shap oriented NE/SW. Most prominent is a ring with strong features at the NE and SW ends. It is surrounded by a fainter halo. Central star (or at least a bright area) is prominent.
Object Name:
NGC 2371
IDs:
Gemini Nebula, NGC 2372, PK 189-19.1, PN G189.1+19.8
RA:
7.4263056
Dec:
29.4905556
Constellation:
Gem
Magnitude:
11.20
Size:
1.2'
Surface Brightness:
20.22 mag/sq"

L filter:
NGC 2371-L.2015.01.20.jpg
OIII filter:
NGC 2371-OIII.2015.01.20.jpg
Date:
1/20/2015
Date:
1/20/2015
Time:
11:46 PM
Time:
11:46 PM
Seeing:
FWHM = 3.2"
Seeing:
FWHM = 3.2"
Darkness:
19.00 mag/sq"
Darkness:
19.61 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Average
Transparency:
Average
Image of NGC 2371Notes: Appears roiughly circular in the L picture, with strong features to the NE and SW. The nebula has been described as "double lobed", and the L picture does barely show the two outer lobes. But these show up more more prominently in the OIII picture as two arcs to the NW and SE. The central star is especially prominent in the L picture.
Object Name:
NGC 2392
IDs:
Eskimo Nebula, Caldwell 39, PK 197-17.1, PN G197.8+17.3
RA:
7.4863333
Dec:
20.9116667
Constellation:
Gem
Magnitude:
8.60
Size:
47"
Surface Brightness:
25.59 mag/sq"

L filter:
NGC 2392-L.2015.01.13.jpg
OIII filter:
NGC 2392-OIII.2015.01.13.jpg
Date:
1/13/2015
Date:
1/13/2015
Time:
11:59 PM
Time:
11:59 PM
Seeing:
FWHM = 2.7"
Seeing:
FWHM = 2.7"
Darkness:
19.77 mag/sq"
Darkness:
19.77 mag/sq"
Moon phase:
44%
Moon phase:
44%
Transparency:
Above average
Transparency:
Above average
Image of NGC 2392Notes: 3 concentric rings. Some mottling in the outer ring. A fourth outer ring is also visible in the OIII picture. Central star is visible. The "Eskimo" effect isn't obvious.
Object Name:
NGC 3587
IDs:
Owl Nebula, M 97, PN G148.4+57.0
RA:
11.2465833
Dec:
55.0191667
Constellation:
UMa
Magnitude:
11.00
Size:
3.4'
Surface Brightness:
22.29 mag/sq"

L filter:
NGC 3587-L.2015.01.13.jpg
OIII filter:
NGC 3587-OIII.2015.01.13.jpg
Date:
1/14/2015
Date:
1/14/2015
Time:
1:14 PM
Time:
1:14 PM
Seeing:
FWHM = 3.0"
Seeing:
FWHM = 3.0"
Darkness:
19.89 mag/sq"
Darkness:
19.89 mag/sq"
Moon phase:
39%
Moon phase:
39%
Transparency:
Above average
Transparency:
Above average
Image of NGC 3587Notes: Large disk without a strong rim. Interior is uneven with a weaker "figure eight" structure tilted bout 45 degrees to the W. Interior is surrounded by a weaker disk that shows best in the OIII picture. Central star is prominent, and two other stars are in the same area.
Object Name:
NGC 6058
IDs:
PK 064-48.1, PN G064.6+48.2
RA:
16.0740556
Dec:
40.6822222
Constellation:
Her
Magnitude:
13.00
Size:
25"
Surface Brightness:
28.62 mag/sq"

L filter:
NGC 6058-L.2015.03.19.jpg
Ha filter:
NGC 6058-Ha.2015.03.19.jpg
Date:
3/20/2015
Date:
3/20/2015
Time:
1:41 PM
Time:
1:41 PM
Seeing:
FWHM = 5.6"
Seeing:
FWHM = 5.6"
Darkness:
19.00 mag/sq"
Darkness:
19.46 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6058Notes: Small disk. Shows well in L, but better in Ha. Has two triangular shapes with their points meeting in the middle, one on N and one on S. Central star quite prominent in L picture, not in Ha.
Object Name:
NGC 6210
IDs:
Turtle Nebula, PK 043-37.1, PN G043.1+37.7
RA:
16.7415278
Dec:
23.8
Constellation:
Her
Magnitude:
9.70
Size:
20"
Surface Brightness:
24.83 mag/sq"

L filter:
NGC 6210-L.2015.03.26.jpg
OIII filter:
NGC 6210-OIII.2015.03.26.jpg
Date:
3/27/2015
Date:
3/27/2015
Time:
2:42 AM
Time:
2:42 AM
Seeing:
FWHM = 3.9"
Seeing:
FWHM = 3.9"
Darkness:
19.61 mag/sq"
Darkness:
19.61 mag/sq"
Moon phase:
48%
Moon phase:
48%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6210Notes: Small very strong central region, somewhat larger than a star, and not quite round. In addition there are two bubbles pushing out of the top and bottom. The strong area could just be a very bright central star, or a nebula that obscures the central star.
Object Name:
NGC 6543
IDs:
Cat's Eye Nebula, Caldwell 6, PK 096-29.1, PN G096.4+29.9
RA:
17.9759444
Dec:
66.6330556
Constellation:
Dra
Magnitude:
8.30
Size:
22"
Surface Brightness:
23.64 mag/sq"

L filter:
NGC 6543-L.2015.03.26.jpg
Ha filter:
NGC 6543-Ha.2015.03.26.jpg
Date:
3/27/2015
Date:
3/27/2015
Time:
12:15 AM
Time:
12:15 AM
Seeing:
FWHM = 4.2"
Seeing:
FWHM = 4.2"
Darkness:
19.06 mag/sq"
Darkness:
19.06 mag/sq"
Moon phase:
47%
Moon phase:
47%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6543Notes: Large irregular ring that has been broken up into many pieces. Gives the impression of a flower. To the W is a particularly heavy area that lies closer to the center than the rest of the ring. This area can be seen in the L picture too. Farther out and slightly to the S is a "swoosh" shape, perhaps a case where the expanding debris encountered a pillar of creation. There is an extremely bright area in the center, with an irregular shape, suggesting that the planetary nebula has undergone more than one explosive event.
Object Name:
NGC 6572
IDs:
Blue Racquetball, PK 034-11.1, PN G034.6+11.8
RA:
18.2017778
Dec:
6.8533333
Constellation:
Oph
Magnitude:
8.00
Size:
15"
Surface Brightness:
22.51 mag/sq"

L filter:
NGC 6572-L.2015.07.10.jpg
Ha filter:
NGC 6572-Ha.2015.07.10.jpg
Date:
7/10/2015
Date:
7/10/2015
Time:
11:05 PM
Time:
11:05 PM
Seeing:
FWHM = 2.5"
Seeing:
FWHM = 2.5"
Darkness:
19.31 mag/sq"
Darkness:
19.31 mag/sq"
Moon phase:
27%
Moon phase:
27%
Transparency:
Below Average
Transparency:
Below Average
Image of NGC 6572Notes: Nearly stellar. FWHM was 9.6", which is much greater than surrounding stars (2.4"), and is slightly egg-shaped, with long axis pointing NS and leaning slightly to the W.
Object Name:
NGC 6720
IDs:
Ring Nebula, M 57, PN G063.1+13.9
RA:
18.8930833
Dec:
33.0291667
Constellation:
Lyr
Magnitude:
9.40
Size:
1.4'
Surface Brightness:
18.76 mag/sq"

L filter:
NGC 6720-L.2015.06.18.jpg
Ha filter:
NGC 6720-Ha.2015.06.18.jpg
Date:
6/19/2015
Date:
6/19/2015
Time:
1:22 AM
Time:
1:22 AM
Seeing:
FWHM = 5.7"
Seeing:
FWHM = 5.7"
Darkness:
19.78 mag/sq"
Darkness:
19.78 mag/sq"
Moon phase:
7%
Moon phase:
7%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6720Notes: Ring Nebula. It is slightly oblong with a hollow interior. The central star is visible but very fuzzy. Two other stars, which I have seen often on better days, are not visible in these pictures.
Object Name:
NGC 6741
IDs:
Phantom Streak, Jonckheere 475, PK 033-2.1, PN G033.8-02.6
RA:
19.0436389
Dec:
-0.4491667
Constellation:
Aql
Magnitude:
12.00
Size:
9.0"
Surface Brightness:
25.40 mag/sq"

L filter:
NGC 6741-L.2015.08.11.jpg
Ha filter:
NGC 6741-Ha.2015.08.11.jpg
Date:
8/11/2015
Date:
8/11/2015
Time:
9:30 PM
Time:
9:30 PM
Seeing:
FWHM = 4.5"
Seeing:
FWHM = 4.5"
Darkness:
19.28 mag/sq"
Darkness:
19.28 mag/sq"
Moon phase:
7%
Moon phase:
7%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6741Notes: The only way to know that this isn't a common star is to compare the L and Ha images. Also the FWHM is 6.6", which is slightly larger than the surrounding stars (4.5"); but no structure is apparent.
Object Name:
NGC 6742
IDs:
Abell 50, PK 078-18.1, PN G078.5+18.7
RA:
18.9888889
Dec:
48.4652778
Constellation:
Dra
Magnitude:
13.40
Size:
31"
Surface Brightness:
29.49 mag/sq"

L filter:
NGC 6742-L.2015.04.14.jpg
Ha filter:
NGC 6742-Ha.2015.04.14.jpg
Date:
4/15/2015
Date:
4/15/2015
Time:
2:55 AM
Time:
2:55 AM
Seeing:
FWHM = 4.4"
Seeing:
FWHM = 4.4"
Darkness:
19.66 mag/sq"
Darkness:
19.66 mag/sq"
Moon phase:
18%
Moon phase:
18%
Transparency:
Average
Transparency:
Average
Image of NGC 6742Notes: Medium sized featureless disk. Shows up in L as well as Ha pictures. The only star in the area lies on the edge of the disk; so seems unlikely to be the central star.
Object Name:
NGC 6751
IDs:
Dandelion Puff Ball, PK 029-5.1, PN G029.2-05.9
RA:
19.0987778
Dec:
-5.9925
Constellation:
Aql
Magnitude:
12.00
Size:
20"
Surface Brightness:
27.13 mag/sq"

L filter:
NGC 6751-L.2015.08.13.jpg
Ha filter:
NGC 6751-Ha.2015.08.13.jpg
Date:
8/13/2015
Date:
8/13/2015
Time:
9:00 PM
Time:
9:00 PM
Seeing:
FWHM = 3.6"
Seeing:
FWHM = 3.6"
Darkness:
19.41 mag/sq"
Darkness:
19.41 mag/sq"
Moon phase:
1%
Moon phase:
1%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6751Notes: A small round disk with a slightly heavier rim, which is slightly mottled. There is a central star visible in the L picture, but not the Ha picture.
Object Name:
NGC 6765
IDs:
M 1-68, PK 062-9.1, PN G062.4+09.5
RA:
19.1851389
Dec:
30.5452778
Constellation:
Lyr
Magnitude:
12.90
Size:
38"
Surface Brightness:
29.43 mag/sq"

L filter:
NGC 6765-L.2015.06.18.jpg
Ha filter:
NGC 6765-Ha.2015.06.18.jpg
Date:
6/19/2015
Date:
6/19/2015
Time:
2:44 PM
Time:
2:44 PM
Seeing:
FWHM = 5.1"
Seeing:
FWHM = 5.1"
Darkness:
19.81 mag/sq"
Darkness:
19.81 mag/sq"
Moon phase:
10%
Moon phase:
10%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6765Notes: Irregular with several heavy places. The two strongest are aligned in a NE/SW direction, with the heaviest of them off-center. These are most apparentt in the Ha picture, but are also visible in the L picture. In addition there's a faint arc to the W that's only visible in the Ha picture.
Object Name:
NGC 6778
IDs:
PK 034-6.1, PN G034.5-06.7
RA:
19.3069167
Dec:
-1.5963889
Constellation:
Aql
Magnitude:
13.30
Size:
25"
Surface Brightness:
28.92 mag/sq"

L filter:
NGC 6778-L.2015.08.13.jpg
Ha filter:
NGC 6778-Ha.2015.08.13.jpg
Date:
8/13/2015
Date:
8/13/2015
Time:
10:14 PM
Time:
10:14 PM
Seeing:
FWHM = 3.2"
Seeing:
FWHM = 3.2"
Darkness:
19.30 mag/sq"
Darkness:
19.30 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6778Notes: A small disk with two lobes, giving the effect of a butterfly. The left-hand lob is slightly larger than the other.
Object Name:
NGC 6781
IDs:
Snowglobe Nebula, PK 041-2.1, PN G041.8-02.9
RA:
19.3078056
Dec:
6.5386111
Constellation:
Aql
Magnitude:
11.80
Size:
1.9'
Surface Brightness:
21.82 mag/sq"

L filter:
NGC 6781-L.2015.07.17.jpg
Ha filter:
NGC 6781-Ha.2015.07.17.jpg
Date:
7/17/2015
Date:
7/17/2015
Time:
11:14 PM
Time:
11:14 PM
Seeing:
FWHM = 6.9"
Seeing:
FWHM = 6.9"
Darkness:
19.29 mag/sq"
Darkness:
19.29 mag/sq"
Moon phase:
4%
Moon phase:
4%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6781Notes: Round disk with not much structure, but a thick heavier rim, especially on the S. Nebulous extensions on the N and S give this the appearance of a box. Central star might be visible in the L pictrure, but if so, it is very faint.
Object Name:
NGC 6790
IDs:
PK 037-6.1, PN G037.8-06.3
RA:
19.3825
Dec:
1.5127778
Constellation:
Aql
Magnitude:
11.40
Size:
2.0"
Surface Brightness:
21.53 mag/sq"

L filter:
NGC 6790-L.2015.08.11.jpg
Ha filter:
NGC 6790-Ha.2015.08.11.jpg
Date:
8/11/2015
Date:
8/11/2015
Time:
10:43 PM
Time:
10:43 PM
Seeing:
FWHM = 4.2"
Seeing:
FWHM = 4.2"
Darkness:
19.36 mag/sq"
Darkness:
19.36 mag/sq"
Moon phase:
7%
Moon phase:
7%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6790Notes: Stellar. The only way to know that this isn't a common star is to compare the L and Ha images. The size of the nebula is about 2". By contrast, the FWHM of this object and the surrounding stars is about 4.3"; so there's no way to resolve any detail.
Object Name:
NGC 6803
IDs:
PK 046-4.1, PN G046.4-04.1
RA:
19.52125
Dec:
10.0561111
Constellation:
Aql
Magnitude:
11.00
Size:
4.0"
Surface Brightness:
22.64 mag/sq"

L filter:
NGC 6803-L.2015.08.05.jpg
Ha filter:
NGC 6803-Ha.2015.08.05.jpg
Date:
8/5/2015
Date:
8/5/2015
Time:
10:01 PM
Time:
11:10 PM
Seeing:
FWHM = 2.7"
Seeing:
FWHM = 2.7"
Darkness:
19.40 mag/sq"
Darkness:
19.40 mag/sq"
Moon phase:
63%
Moon phase:
63%
Transparency:
Below average
Transparency:
Below average
Image of NGC 6803Notes: Stellar. The only way to know that this isn't a common star is to compare the L and Ha images. Also the target FWHM is 3.5", significantly larger than the surrounding stars (2.7").
Object Name:
NGC 6804
IDs:
PK 045-4.1, PN G045.7-04.5
RA:
19.5264444
Dec:
9.2255556
Constellation:
Aql
Magnitude:
12.40
Size:
1.1'
Surface Brightness:
21.24 mag/sq"

L filter:
NGC 6804-L.2015.07.17.jpg
Ha filter:
NGC 6804-Ha.2015.07.17.jpg
Date:
7/18/2015
Date:
7/18/2015
Time:
12:28 AM
Time:
12:28 AM
Seeing:
FWHM = 6.4"
Seeing:
FWHM = 6.4"
Darkness:
19.49 mag/sq"
Darkness:
19.49 mag/sq"
Moon phase:
4%
Moon phase:
4%
Transparency:
Average
Transparency:
Average
Image of NGC 6804Notes: Small irregular disk, shows some structure in the interior. But seeing was so bad that most of the structure is smeared out. It may be somewhat heavier in the S, with a fainter rim beyond that. A central star is visible.
Object Name:
NGC 6807
IDs:
PK 042-6.1, PN G042.9-06.9
RA:
19.5759722
Dec:
5.6841667
Constellation:
Aql
Magnitude:
13.80
Size:
2.0"
Surface Brightness:
23.93 mag/sq"

L filter:
NGC 6807-L.2015.08.07.jpg
Ha filter:
NGC 6807-Ha.2015.08.07.jpg
Date:
8/8/2015
Date:
8/8/2015
Time:
12:14 AM
Time:
12:14 AM
Seeing:
FWHM = 5.2"
Seeing:
FWHM = 5.2"
Darkness:
19.39 mag/sq"
Darkness:
19.39 mag/sq"
Moon phase:
40%
Moon phase:
40%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6807Notes: The only way to know that this isn't a common star is to compare the L and Ha images. The seeing was so bad that the FWHM of this object was comparable to surrounding stars; so it was impossible to know whether there was any structure worth seeing.
Object Name:
NGC 6826
IDs:
Blinking Planetary, Caldwell 15, PK 083-12.1, PN G083.5+12.7
RA:
19.7467222
Dec:
50.525
Constellation:
Cyg
Magnitude:
8.80
Size:
27"
Surface Brightness:
24.59 mag/sq"

L filter:
NGC 6826-L.2015.06.23.jpg
Ha filter:
NGC 6826-Ha.2015.06.23.jpg
Date:
6/23/2015
Date:
6/23/2015
Time:
11:19 PM
Time:
11:19 PM
Seeing:
FWHM = 3.4"
Seeing:
FWHM = 3.4"
Darkness:
19.44 mag/sq"
Darkness:
19.44 mag/sq"
Moon phase:
45%
Moon phase:
45%
Transparency:
Transparent
Transparency:
Transparent
Image of NGC 6826Notes: Very faint medium sized disk, and very strong smallish disk, about one third the size of the larger disk Neither disk shows structure. I suppose the fainter disk could be the result of an older explosion and the strronger disk more recent.
Object Name:
NGC 6833
IDs:
PK 082-11.1
RA:
19.8296111
Dec:
48.9611111
Constellation:
Cyg
Magnitude:
13.80
Size:
2.0"
Surface Brightness:
23.93 mag/sq"

L filter:
NGC 6833-L2015.06.18..jpg
Ha filter:
NGC 6833-Ha.2015.06.18.jpg
Date:
6/19/2015
Date:
6/19/2015
Time:
4:00 AM
Time:
4:00 AM
Seeing:
FWHM = 5.1"
Seeing:
FWHM = 5.1"
Darkness:
19.82 mag/sq"
Darkness:
19.82 mag/sq"
Moon phase:
7%
Moon phase:
7%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6833Notes: The only way to know that this isn't a common star is to compare the L and Ha images. L picture comprises 15 minutes and Ha picture comprises 10 minutes because session was cut short by the rising sun.
Object Name:
NGC 6852
IDs:
K1-18
RA:
20.0108889
Dec:
1.7277778
Constellation:
Aql
Magnitude:
11.40
Size:
28"
Surface Brightness:
27.26 mag/sq"

L filter:
NGC 6852-L.2015.08.13.jpg
Ha filter:
NGC 6852-Ha.2015.08.13.jpg
Date:
8/13/2015
Date:
8/13/2015
Time:
11:53 PM
Time:
11:53 PM
Seeing:
FWHM = 3.6"
Seeing:
FWHM = 3.6"
Darkness:
19.78 mag/sq"
Darkness:
19.78 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6852Notes: A small disk with a cross in the middle that separates the nebula into four equal-sized parts. Two of the parts in the NW and SE have stronger areas. These probably aren't foreground stars because their brightness changes with the filter.
Object Name:
NGC 6853
IDs:
Dumbbell, M 27, PN G060.8-03.6
RA:
19.9934167
Dec:
22.7211111
Constellation:
Vul
Magnitude:
7.30
Size:
8.0'
Surface Brightness:
20.44 mag/sq"

L filter:
NGC 6853-L.2015.07.10.jpg
Ha filter:
NGC 6853-Ha.2015.07.10.jpg
Date:
7/11/2015
Date:
7/11/2015
Time:
1:38 AM
Time:
1:38 AM
Seeing:
FWHM = 3.1"
Seeing:
FWHM = 3.1"
Darkness:
19.76 mag/sq"
Darkness:
19.76 mag/sq"
Moon phase:
26%
Moon phase:
26%
Transparency:
Below Average
Transparency:
Below Average
Image of NGC 6853Notes: Dumbell Nebula shows up well in both L and Ha picture. Because of clouds, the L picture was only 5 minutes, and the Ha picture totalled only 15 minutes. Nonetheless structure is visible everywhere in this large target, including some wispy features outside the main body. A central star can be seen in the L picture. There is a lot of mottling in the Ha picture, but not so evident in the L picture.
Object Name:
NGC 6879
IDs:
PK 057-8.1, PN G057.2-08.9
RA:
20.1740833
Dec:
16.9225
Constellation:
Sge
Magnitude:
11.00
Size:
4.7"
Surface Brightness:
22.99 mag/sq"

L filter:
NGC 6879-L.2015.07.26.jpg
Ha filter:
NGC 6879-Ha.2015.07.26.jpg
Date:
7/26/2015
Date:
7/26/2015
Time:
11:19 PM
Time:
11:19 PM
Seeing:
FWHM = 6.4"
Seeing:
FWHM = 6.4"
Darkness:
19.06 mag/sq"
Darkness:
19.06 mag/sq"
Moon phase:
77%
Moon phase:
77%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6879Notes: Almost stellar. The object is said to span 4.7 arcsec, but it measures 6.8 arcsec due to very poor seeing. Neighboring stars measure just slightly less (6.4 arcsec), so this might be taken as evidence that the object is not stellar. The target's brightness also differs between the L and Ha images, which can be taken as evidence that this is not a common star.
Object Name:
NGC 6881
IDs:
PK 074-2.1, PN G074.5+02.1
RA:
20.18125
Dec:
37.4113889
Constellation:
Cyg
Magnitude:
14.30
Size:
3.3"
Surface Brightness:
25.52 mag/sq"

L filter:
NGC 6881-L.2014.11.25.jpg
OIII filter:
NGC 6881-O-III.2014.11.25.jpg
Date:
11/25/2014
Date:
11/25/2014
Time:
6:29 PM
Time:
6:29 PM
Seeing:
FWHM = 2.8"
Seeing:
FWHM = 2.8"
Darkness:
18.83 mag/sq"
Darkness:
18.83 mag/sq"
Moon phase:
13%
Moon phase:
13%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6881Notes: Almost stellar, slightly oblong in a SE-NW direction.
Object Name:
NGC 6884
IDs:
PK 082-7.1, PN G082.1+07.0
RA:
20.17325
Dec:
46.4611111
Constellation:
Cyg
Magnitude:
12.60
Size:
5.6"
Surface Brightness:
24.97 mag/sq"

L filter:
NGC 6884-L.2015.06.22.jpg
Ha filter:
NGC 6884-Ha.2015.06.22.jpg
Date:
6/23/2015
Date:
6/23/2015
Time:
4:14 AM
Time:
4:14 AM
Seeing:
FWHM = 4.5"
Seeing:
FWHM = 4.5"
Darkness:
19.61 mag/sq"
Darkness:
19.61 mag/sq"
Moon phase:
38%
Moon phase:
38%
Transparency:
Above average
Transparency:
Above average
Image of NGC 6884Notes: The only way to know that this isn't a common star is to compare the L and Ha images. Also the nebula's FWHM might be a little bigger than for neighboring stars, suggesting that I might have been able to see a little structure if seeing had been better. Note that there is also one feature in the SE corner of the image that brightens slightly in the Ha image; so this might be another Planetary Nebula. The L and Ha exposures totalled just five seconds each because the session had to be terminated when the sun was rising.
Object Name:
NGC 6886
IDs:
PK 060-7.2, PN G060.1-07.7
RA:
20.2118889
Dec:
19.9897222
Constellation:
Sge
Magnitude:
12.50
Size:
4.0"
Surface Brightness:
24.14 mag/sq"

L filter:
NGC 6886-L.2015.07.17.jpg
Ha filter:
NGC 6886-Ha.2015.07.17.jpg
Date:
7/18/2015
Date:
7/18/2015
Time:
1:45 AM
Time:
1:45 AM
Seeing:
FWHM = 6.2"
Seeing:
FWHM = 6.2"
Darkness:
19.67 mag/sq"
Darkness:
19.67 mag/sq"
Moon phase:
4%
Moon phase:
4%
Transparency:
Average
Transparency:
Average
Image of NGC 6886Notes: Stellar. The only way to know that this isn't a common star is to compare the L and Ha images. Seeing was so bad that it is impossible to tell whether this object is any larger than the surrounding stars.
Object Name:
NGC 6891
IDs:
PK 054-12.1, PN G054.1-12.1
RA:
20.2524444
Dec:
12.7044444
Constellation:
Del
Magnitude:
10.50
Size:
15"
Surface Brightness:
25.01 mag/sq"

L filter:
NGC 6891-L.2015.08.05.jpg
Ha filter:
NGC 6891-Ha.2015.08.05.jpg
Date:
8/5/2015
Date:
8/5/2015
Time:
11:14 PM
Time:
11:14 PM
Seeing:
FWHM = 2.3"
Seeing:
FWHM = 2.3"
Darkness:
19.61 mag/sq"
Darkness:
19.61 mag/sq"
Moon phase:
63%
Moon phase:
63%
Transparency:
Below average
Transparency:
Below average
Image of NGC 6891Notes: Stellar. The only way to know that this isn't a common star is to compare the L and Ha images. Also the target FWHM is 4.1", significantly larger than the surrounding stars (2.3"). The nebula might also be just slightly oblong.
Object Name:
NGC 6894
IDs:
PK 069-2.1, PN G069.4-02.6
RA:
20.2733333
Dec:
30.5647222
Constellation:
Cyg
Magnitude:
14.40
Size:
44"
Surface Brightness:
31.25 mag/sq"

L filter:
NGC 6894-L.2015.06.23.jpg
OIII filter:
NGC 6894-OIII.2015.06.23.jpg
Date:
6/24/2015
Date:
6/24/2015
Time:
3:14 AM
Time:
3:14 AM
Seeing:
FWHM = 4.9"
Seeing:
FWHM = 4.9"
Darkness:
19.86 mag/sq"
Darkness:
19.86 mag/sq"
Moon phase:
47%
Moon phase:
47%
Transparency:
Transparent
Transparency:
Transparent
Image of NGC 6894Notes: Donut shape, with a star on NW edge. No star is closer to the center. No structure seen; but if has some, seeing was bad enough to cover it.
Object Name:
NGC 6905
IDs:
Blue Flash Nebula, PK 061-9.1, PN G061.4-09.5
RA:
20.3730278
Dec:
20.1047222
Constellation:
Del
Magnitude:
12.00
Size:
44"
Surface Brightness:
28.85 mag/sq"

L filter:
NGC 6905-L.2015.07.16.jpg
Ha filter:
NGC 6905-Ha.2015.07.16.jpg
Date:
7/17/2015
Date:
7/17/2015
Time:
12:28 AM
Time:
12:28 AM
Seeing:
FWHM = 5.0"
Seeing:
FWHM = 5.0"
Darkness:
19.75 mag/sq"
Darkness:
19.75 mag/sq"
Moon phase:
1%
Moon phase:
1%
Transparency:
Transparent
Transparency:
Transparent
Image of NGC 6905Notes: A small disk, slightly heavier on the E, with slight projections on the NNW and SSE ends. Central star is visible. Nebula can be seen in both L and Ha pix.
Object Name:
NGC 7008
IDs:
Fetus Nebula, PK 093-5.2, PN G093.4+05.4
RA:
21.0090278
Dec:
54.5433333
Constellation:
Cyg
Magnitude:
12.00
Size:
1.4'
Surface Brightness:
21.36 mag/sq"

L filter:
NGC 7008-L.2014.11.25.jpg
OIII filter:
NGC 7008-O-III.2014.11.25.jpg
Date:
11/25/2014
Date:
11/25/2014
Time:
9:42 PM
Time:
9:42 PM
Seeing:
FWHM = 2.9"
Seeing:
FWHM = 2.9"
Darkness:
18.76 mag/sq"
Darkness:
18.76 mag/sq"
Moon phase:
14%
Moon phase:
14%
Transparency:
Above average
Transparency:
Above average
Image of NGC 7008Notes: Large well-defined nebula. Heavier in the NNE direction. Central star is visible.
Object Name:
NGC 7026
IDs:
Cheeseburger Nebula, PK 089-0.1, PN G089.0+00.3
RA:
21.1050556
Dec:
47.8513889
Constellation:
Cyg
Magnitude:
12.00
Size:
25"
Surface Brightness:
27.62 mag/sq"

L filter:
NGC 7026-L.2014.11.25.jpg
OIII filter:
NGC 7026-O-III.2014.11.25.jpg
Date:
11/25/2014
Date:
11/25/2014
Time:
9:04 PM
Time:
9:04 PM
Seeing:
FWHM = 2.8"
Seeing:
FWHM = 2.8"
Darkness:
18.26 mag/sq"
Darkness:
18.26 mag/sq"
Moon phase:
14%
Moon phase:
14%
Transparency:
Above average
Transparency:
Above average
Image of NGC 7026Notes: Small nebula, Appears to have two heavy central regions separated by a dust lane. No sign of a central star.
Object Name:
NGC 7027
IDs:
Green Rectangle, PK 084-3.1, PN G084.9-03.4
RA:
21.1171389
Dec:
42.2361111
Constellation:
Cyg
Magnitude:
9.60
Size:
18"
Surface Brightness:
24.50 mag/sq"

L filter:
NGC 7027-L.2015.07.15.jpg
Ha filter:
NGC 7027-Ha.2015.07.15.jpg
Date:
7/16/2015
Date:
7/16/2015
Time:
12:18 AM
Time:
12:18 AM
Seeing:
FWHM = 3.0"
Seeing:
FWHM = 3.0"
Darkness:
19.79 mag/sq"
Darkness:
19.79 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Transparent
Transparency:
Transparent
Image of NGC 7027Notes: Slightly oblong shape, oriented NW/SE, almost stellar. Slight bloom in the L image distorts the edge; but the Ha image shows no structure. No central star visible in the glow of the nebula.
Object Name:
NGC 7048
IDs:
Hubble 9, PK 088-1.1, PN G088.7-01.6
RA:
21.2375556
Dec:
46.2883333
Constellation:
Cyg
Magnitude:
11.00
Size:
1.0'
Surface Brightness:
19.63 mag/sq"

L filter:
NGC 7048-L.2015.07.15.jpg
Ha filter:
NGC 7048-Ha.2015.07.15.jpg
Date:
7/16/2015
Date:
7/16/2015
Time:
1:32 AM
Time:
1:32 AM
Seeing:
FWHM = 4.4"
Seeing:
FWHM = 4.4"
Darkness:
19.85 mag/sq"
Darkness:
19.85 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Transparent
Transparency:
Transparent
Image of NGC 7048Notes: Mottled disk, with a weak edge on the N suggesting that material might have broken out there. Mottling has an hour-glass shape. Poor seeing has problably smeared out some of the mottling. Disk is barely visible in L picture but stands out well in Ha picture. No central star visible.
Object Name:
NGC 7094
IDs:
K 1-19, PK 066-28.1, PN G066.7-28.2
RA:
21.6147222
Dec:
12.7886111
Constellation:
Peg
Magnitude:
13.40
Size:
1.7'
Surface Brightness:
23.18 mag/sq"

L filter:
NGC 7094-L.2015.08.11.jpg
OIII filter:
NGC 7094-OIII.2015.08.11.jpg
Date:
8/12/2015
Date:
8/12/2015
Time:
12:04 AM
Time:
12:04 AM
Seeing:
FWHM = 3.9"
Seeing:
FWHM = 3.9"
Darkness:
19.63 mag/sq"
Darkness:
19.63 mag/sq"
Moon phase:
7%
Moon phase:
7%
Transparency:
Above average
Transparency:
Above average
Image of NGC 7094Notes: A medium-sized disk with mottled appearance, suggesting that there might be several expansion fronts coming from this star. The nebula can be seen in the L picture but is most apparent in the OIII picture.
Object Name:
NGC 7139
IDs:
RA:
21.7690556
Dec:
63.7913889
Constellation:
Cep
Magnitude:
13.50
Size:
1.3'
Surface Brightness:
22.70 mag/sq"

L filter:
NGC 7139-L.2015.08.05.jpg
OIII filter:
NGC 7139-OIII.2015.08.05.jpg
Date:
8/6/2015
Date:
8/6/2015
Time:
12:33 AM
Time:
12:33 AM
Seeing:
FWHM = 3.5"
Seeing:
FWHM = 3.5"
Darkness:
19.58 mag/sq"
Darkness:
19.58 mag/sq"
Moon phase:
62%
Moon phase:
62%
Transparency:
Below average
Transparency:
Below average
Image of NGC 7139Notes: Flat medium sized disk, with a weaker area that runs roughly NS, bisecting it into two equal parts. Looks sort of like a ladybug. The nebula is also weakly visible in the L picture. No particularly well-centered star.
Object Name:
NGC 7354
IDs:
PK 107-2.1, PN G107.8+02.3
RA:
22.6721944
Dec:
61.2855556
Constellation:
Cep
Magnitude:
12.90
Size:
22"
Surface Brightness:
28.24 mag/sq"

L filter:
NGC 7354-L.2015.08.11.jpg
OIII filter:
NGC 7354-OIII.2015.08.11.jpg
Date:
8/12/2015
Date:
8/12/2015
Time:
1:17 AM
Time:
1:17 AM
Seeing:
FWHM = 4.3"
Seeing:
FWHM = 4.3"
Darkness:
19.80 mag/sq"
Darkness:
19.80 mag/sq"
Moon phase:
6%
Moon phase:
6%
Transparency:
Above average
Transparency:
Above average
Image of NGC 7354Notes: Small disk with a slightly heavier rim, especially on E and W edges. This structure shows up in both the L and OIII images.
Object Name:
NGC 7662
IDs:
Blue Snowball, Caldwell 22, PK 106-17.1, PN G106.5-17.6
RA:
23.4316667
Dec:
42.5347222
Constellation:
And
Magnitude:
8.60
Size:
17"
Surface Brightness:
23.38 mag/sq"

L filter:
NGC 7662-L.2015.07.26.jpg
Ha filter:
NGC 7662-Ha.2015.07.26.jpg
Date:
7/27/2015
Date:
7/27/2015
Time:
3:09 AM
Time:
3:09 AM
Seeing:
FWHM = 3.8"
Seeing:
FWHM = 3.8"
Darkness:
19.86 mag/sq"
Darkness:
19.86 mag/sq"
Moon phase:
78%
Moon phase:
78%
Transparency:
Above average
Transparency:
Above average
Image of NGC 7662Notes: Small object just slightly larger than stellar, and slightly longer in NNE/SSW direction. The object can be seen in both the L and Ha pictures. There is no structure inside the target.
Object Name:
PC 19
IDs:
(Peimbert Costero)
RA:
18.4123611
Dec:
2.4911111
Constellation:
Ser
Magnitude:
12.20
Size:
14"
Surface Brightness:
26.56 mag/sq"

L filter:
PC 19-L.2015.07.10.jpg
Ha filter:
PC 19-Ha.2015.07.10.jpg
Date:
7/10/2015
Date:
7/10/2015
Time:
9:49 PM
Time:
9:49 PM
Seeing:
FWHM = 2.7"
Seeing:
FWHM = 2.7"
Darkness:
19.86 mag/sq"
Darkness:
19.86 mag/sq"
Moon phase:
28%
Moon phase:
28%
Transparency:
Below Average
Transparency:
Below Average
Image of PC 19Notes: The only way to know that this isn't a common star is to compare the L and Ha images. The target's FWHM is 3.1", versus neighboring stars of 2.7"; so evidentally it is almost resolvable. But the pictures do not show any shape or other detail that would distinguish it from a star.
Object Name:
Pease 1
IDs:
(In M15), PK 065-27.1, PN G065.0-27.3
RA:
21.5003333
Dec:
12.1697222
Constellation:
Peg
Magnitude:
14.90
Size:
1.0"
Surface Brightness:
23.53 mag/sq"

L filter:
Pease 1-L.2015.08.07.jpg
Ha filter:
Pease 1-Ha.2015.08.07.jpg
Date:
8/8/2015
Date:
8/8/2015
Time:
2:43 AM
Time:
2:43 AM
Seeing:
FWHM = 5.5"
Seeing:
FWHM = 5.5"
Darkness:
19.54 mag/sq"
Darkness:
19.54 mag/sq"
Moon phase:
39%
Moon phase:
39%
Transparency:
Above average
Transparency:
Below average
Image of Pease 1Notes: This is a tiny planetary nebula embedded in the M15 cluster. It is located at about 11 o'clock, and about half way out from the center of the nebula. Its size is only 1 arcsecond, so there is no way to resolve any structure. The only way to know that this isn't a common star is to compare the L and Ha images, and even then the target barely jumps out from the cluster's stars.
Object Name:
Sh 1-89
IDs:
Moth Nebula, Sharpless 1-89, PK 089-0.1, PN G089.8-00.6
RA:
21.2354444
Dec:
47.7727778
Constellation:
Cyg
Magnitude:
14.80
Size:
1.1'
Surface Brightness:
23.64 mag/sq"

L filter:
Sh 1-89-L.2015.07.15.jpg
Ha filter:
Sh 1-89-Ha.2015.07.15.jpg
Date:
7/16/2015
Date:
7/16/2015
Time:
2:45 AM
Time:
2:45 AM
Seeing:
FWHM = 4.2"
Seeing:
FWHM = 4.2"
Darkness:
19.02 mag/sq"
Darkness:
19.02 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Transparent
Transparency:
Transparent
Image of Sh 1-89Notes: Butterfly shaped, with long thin "body" oriented NW/SE, and circular "wings" on the sides. The wings extend out a little farther than the length of the body; but there are traces of nebulosity even farther out, particularly to the SW. There is one bright star at the SE tail of the body, but it seems more likely to be a foreground star than a central star. No other star would qualify as a central star. The wings are quite noisy. It would take a much longer exposure to show these areas off well.
Object Name:
Sh 2-71
IDs:
Sharpless 2-71, PK 036-1.1, PN G035.9-01.1
RA:
19.0334167
Dec:
2.1530556
Constellation:
Aql
Magnitude:
12.20
Size:
2.6'
Surface Brightness:
22.90 mag/sq"

L filter:
Sh 2-71-L.2015.07.17.jpg
Ha filter:
Sh 2-71-Ha.2015.07.17.jpg
Date:
7/17/2015
Date:
7/17/2015
Time:
10:00 PM
Time:
10:00 PM
Seeing:
FWHM = 4.0"
Seeing:
FWHM = 4.9"
Darkness:
19.01 mag/sq"
Darkness:
19.01 mag/sq"
Moon phase:
3%
Moon phase:
3%
Transparency:
Above average
Transparency:
Above average
Image of Sh 2-71Notes: Highly distorted shape with many convolutions, and some faint extensions especially to the SE and NW. A central star is visible. Nebula can be seen in L picture, but is best in Ha.
Object Name:
Simeiz 22
IDs:
LBN 633
RA:
1.5092222
Dec:
58.4138889
Constellation:
Cas
Magnitude:
12.10
Size:
340"
Surface Brightness:
33.39 mag/sq"

L filter:
Simeiz 22-L.2015.08.13.jpg
Ha filter:
Simeiz 22-Ha.2015.08.13.jpg
Date:
8/14/2015
Date:
8/14/2015
Time:
1:09 AM
Time:
1:09 AM
Seeing:
FWHM = 3.1"
Seeing:
FWHM = 3.1"
Darkness:
19.94 mag/sq"
Darkness:
19.94 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Above average
Transparency:
Above average
Image of Simeiz 22Notes: A large crescent Moon shape, with many striations. The loop is heaviest in the SE and completely disappears in the NW. The crescent is visible in the L picture, but is best in the Ha picture. There are several stars near the center of the nebula, any of which could be the original star.
Object Name:
Vy 1-1
IDs:
(Vyssotsky), VV' 4
RA:
0.3117222
Dec:
53.8722222
Constellation:
Cas
Magnitude:
12.50
Size:
14"
Surface Brightness:
26.86 mag/sq"

L filter:
Vy 1-1-L.2015.08.11.jpg
Ha filter:
Vy 1-1-Ha.2015.08.11.jpg
Date:
8/12/2015
Date:
8/12/2015
Time:
3:53 AM
Time:
3:53 AM
Seeing:
FWHM = 4.7"
Seeing:
FWHM = 4.7"
Darkness:
19.89 mag/sq"
Darkness:
19.89 mag/sq"
Moon phase:
6%
Moon phase:
6%
Transparency:
Above average
Transparency:
Above average
Image of Vy 1-1Notes: Stellar. The only way to know that this isn't a common star is to compare the L and Ha images. Also the target is slightly larger (6.4") than the surrounding stars ("4.7"). It is reported to have a size of 14"; but this doesn't seem to be supported by my image. However seeing was poor, so perhaps it would have shown up better on a better night or with a different filter.
Object Name:
Vy 1-2
IDs:
(Vyssotsky), VV' 291
RA:
17.9063889
Dec:
27.9994444
Constellation:
Her
Magnitude:
12.00
Size:
5.2" x 4.1"
Surface Brightness:
23.95 mag/sq"

L filter:
Vy 1-2-L.2015.04.14.jpg
Ha filter:
Vy 1-2-Ha.2015.04.14.jpg
Date:
4/15/2015
Date:
4/15/2015
Time:
1:42 AM
Time:
1:42 AM
Seeing:
FWHM = 4.4"
Seeing:
FWHM = 4.4"
Darkness:
19.47 mag/sq"
Darkness:
19.47 mag/sq"
Moon phase:
19%
Moon phase:
19%
Transparency:
Average
Transparency:
Average
Image of Vy 1-2Notes: Stellar. The only way to know that this isn't a common star is to compare the L and Ha images.
Object Name:
Vy 2-2
IDs:
M 1-70, PK 045-2.1, PN G045.4-02.7
RA:
19.4061667
Dec:
9.8991667
Constellation:
Aql
Magnitude:
12.70
Size:
14"
Surface Brightness:
27.06 mag/sq"

L filter:
Vy 2-2-L.2015.07.15.jpg
Ha filter:
Vy 2-2-Ha.2015.07.15.jpg
Date:
7/15/2015
Date:
7/15/2015
Time:
11:05 PM
Time:
11:05 PM
Seeing:
FWHM = 4.2"
Seeing:
FWHM = 4.2"
Darkness:
19.47 mag/sq"
Darkness:
19.47 mag/sq"
Moon phase:
0%
Moon phase:
0%
Transparency:
Transparent
Transparency:
Transparent
Image of Vy 2-2Notes: The FWHM of the target is very close to that for the stars. Perhaps with better seeing one woiuld have seen a difference; but with the given data the only way to know that this isn't a common star is to compare the object's brightness in the L and Ha images.
Object Name:
Vy 2-3
IDs:
(Vyssotsky)
RA:
23.3827778
Dec:
46.8994444
Constellation:
And
Magnitude:
13.90
Size:
4.6"
Surface Brightness:
25.84 mag/sq"

L filter:
Vy 2-3-L.2015.08.05.jpg
Ha filter:
Vy 2-3-Ha.2015.08.05.jpg
Date:
8/6/2015
Date:
8/6/2015
Time:
1:47 AM
Time:
1:47 AM
Seeing:
FWHM = 2.9"
Seeing:
FWHM = 2.9"
Darkness:
19.32 mag/sq"
Darkness:
19.32 mag/sq"
Moon phase:
61%
Moon phase:
61%
Transparency:
Below average
Transparency:
Below average
Image of Vy 2-3Notes: Stellar. The only way to know that this isn't a common star is to compare the L and Ha images. Also the target FWHM is 4.7", significantly larger than the surrounding stars (2.9").
